Product Introduction

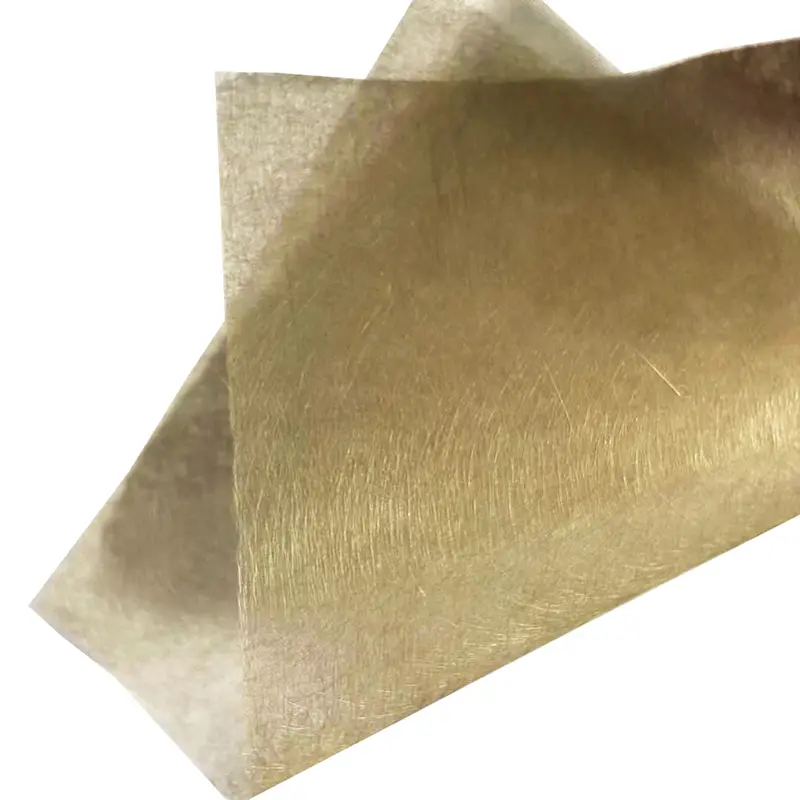

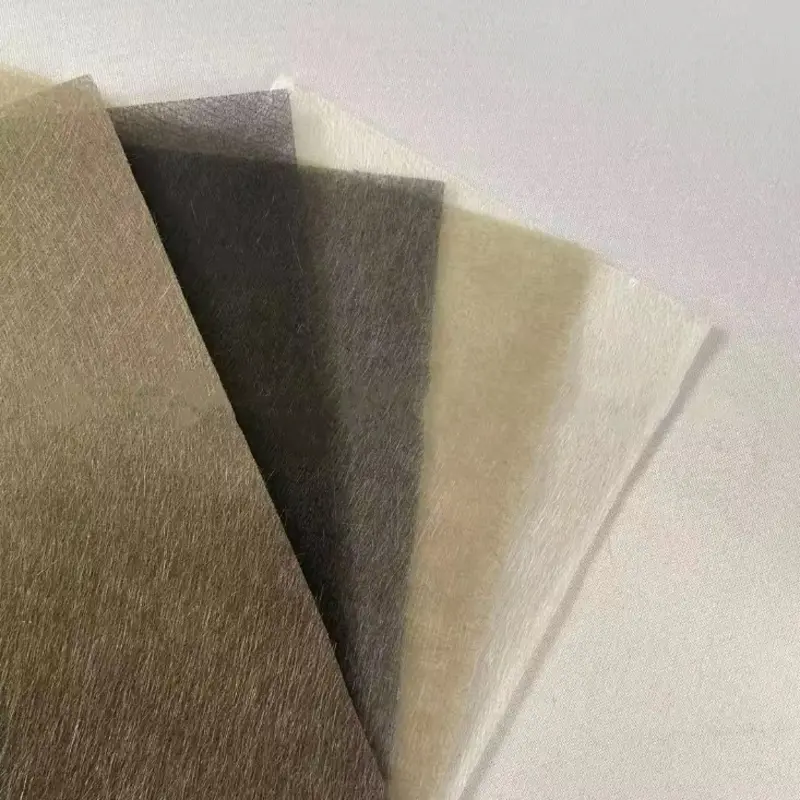

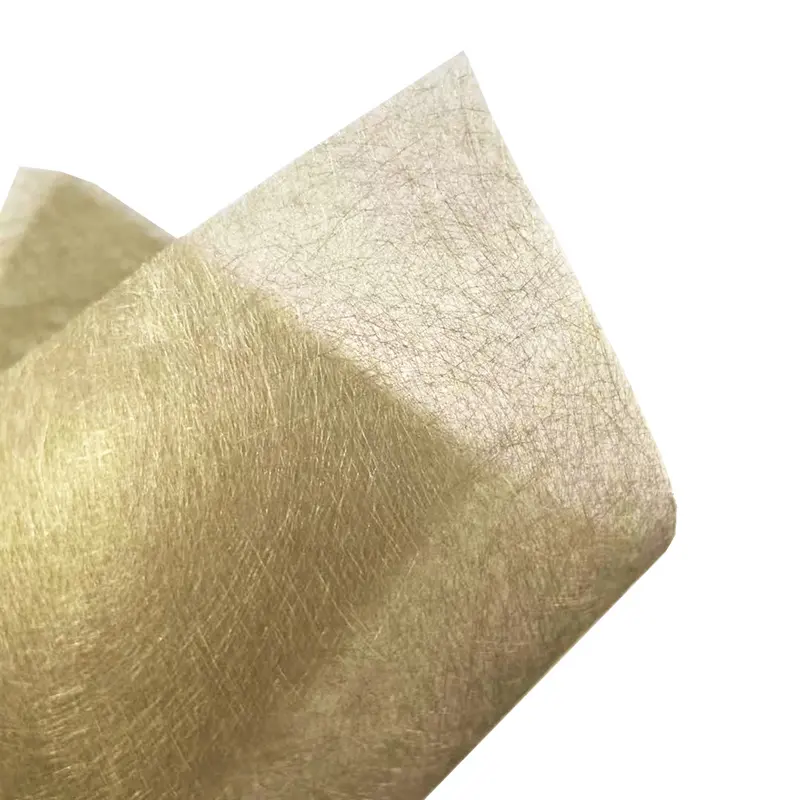

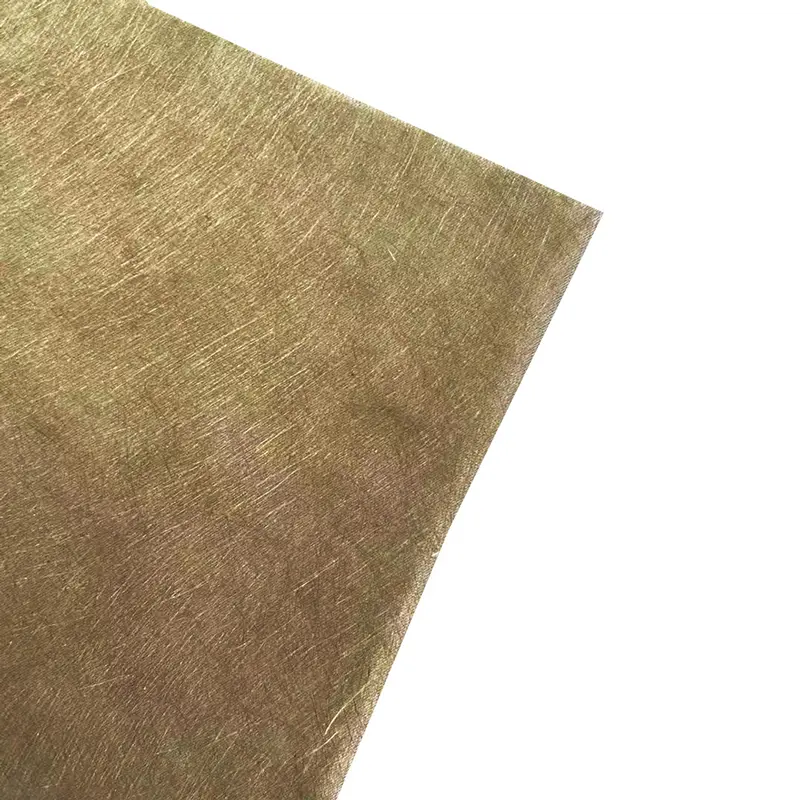

Basalt Fiber Surfacing Tissue Mat is produced with basalt chopped fiber under wet paper making process. It is designed for use in filament winding process for manufacture of GRP pipes, storage tanks, etc. Or in hand lay-up process for improving FRP surface and compression molding processes, etc.

The binder of basalt fiber surfacing tissue mat has good compatibility

with resin, which can improve the formability of special shaped

composite. It is also the preferred material for pultrusion and filament winding process.

Send Inquiry

Product Description

PRODUCT SPECIFICATION

Filament Diameter (μm)	Areal Weight (g/m²)	Width (mm)	Organic Matter Content (%)	Moisture Content (%)	Resin Compatibility
11	30	1000	6-13	≤0.1	Epoxy, Polyester
11	40	1000	6-26	≤0.1	Epoxy, Polyester
11	50	1000	6-26	≤0.1	Epoxy, Polyester
11	100	1000	6-26	≤0.1	Epoxy, Polyester

APPLICATIONS

1. Building materials

Basalt Fiber Surfacing Tissue Mat is used in the construction industry for thermal insulation, sound insulation, reinforcement, etc. of concrete structures. It is an ideal material for enhancing the durability and strength of building components such as panels, beams, and columns.

2. Reinforcement materials, GRP pipes, storage tanks

In infrastructure and industrial applications, Basalt Fiber Surfacing Tissue Mat is used as reinforcement material for GRP (glass fiber reinforced plastic) pipes, storage tanks and other composite structures. Its high tensile strength and corrosion resistance make it an excellent choice for enhancing the structural integrity of these components.

3. Molds, automobiles, transportation, shipbuilding

Basalt Fiber Surfacing Tissue Mat is widely used in mold manufacturing in automobiles, transportation, shipbuilding and other industries. Its heat resistance and dimensional stability make it suitable for making molds for automotive parts, transportation components and shipbuilding applications.

4. Waterproofing membranes, asphalt shingles, FRP surface gel coats and mold materials

The waterproofing industry benefits from the use of Basalt Fiber Surfacing Tissue Mat in waterproofing membrane production and asphalt shingle reinforcement. In addition, it is used as surface gel coat and mold material in FRP (fiber reinforced plastic) product manufacturing to enhance durability and weather resistance.

5. Car top reinforcement materials

Basalt Fiber Surfacing Tissue Mat is used in the automotive field to reinforce convertible roofs, providing lightweight and strong support for soft-top vehicles to ensure service life and structural integrity.

Frequently Asked Questions (FAQ)

What is Basalt Fiber Surfacing Tissue Mat?

Basalt Fiber Surfacing Tissue Mat is a non-woven material made of basalt fiber filaments. It is designed for surface reinforcement, thermal insulation, soundproofing, and corrosion resistance across various industrial applications.

What resins are compatible with this tissue mat?

This surfacing tissue mat features excellent resin compatibility, specifically optimized for Epoxy and Polyester resins, ensuring robust bonding and structural integrity in composite manufacturing.

How does the tissue mat benefit GRP pipes and storage tanks?

It serves as a high-performance reinforcement layer that enhances the tensile strength, leak-proof properties, and chemical corrosion resistance of GRP (Glass Fiber Reinforced Plastic) pipes and industrial storage tanks.

Can it be used in automotive and transportation industries?

Yes, it is highly suitable for automotive mold manufacturing, transportation components, and car top reinforcement (such as convertible roofs), providing lightweight yet exceptionally strong structural support.

What are the standard specifications available?

The mat is available in a filament diameter of 11μm, with areal weights ranging from 30 to 100 g/m², a standard width of 1000mm, and a low moisture content of ≤0.1% to ensure optimal processing quality.

Is this mat suitable for waterproofing applications?

Absolutely. It is widely used to reinforce waterproofing membranes, asphalt shingles, and FRP surface gel coats, significantly improving weatherability, water resistance, and overall product lifespan.
