China Basalt Fiber Unidirectional Cloth Pricelist, Factories

Product Introduction

Basalt fiber unidirectional cloth also known as basalt UD fabric,is a type of composite material fabric made from basalt fibers arranged in a single direction within a matrix material.

The monofilament is uniformly coated with an infiltrating agent suitable for phenolic and epoxy resins, which is suitable for polyester, epoxy, phenolic, nylon and other resin properties. And the coupling agent matching with various resins is added to the infiltrating agent to give full play to the reinforcing effect of basalt fiber unidirectional cloth

Send Inquiry

Product Description

PRODUCT FEATURES

●

Unidirectional Orientation: Basalt fiber unidirectional fabric consists of basalt fibers aligned predominantly in one direction within the fabric. This unidirectional arrangement provides high tensile strength and stiffness along the fiber direction, making it ideal for load-bearing applications.

●

High Strength-to-Weight Ratio: Basalt fiber unidirectional fabric offers a high strength-to-weight ratio, providing excellent strength properties while remaining lightweight. This characteristic is advantageous in applications where weight reduction is critical, such as aerospace and automotive industries.

●

Directional Properties: The unidirectional arrangement of basalt fibers in the fabric allows for directional properties, meaning the mechanical properties of the composite can be optimized in the direction of the applied load. This directional reinforcement enhances the structural integrity and performance of the final product.

●

Customization: Basalt fiber unidirectional fabric can be customized to meet specific engineering requirements. The fiber orientation, fiber volume fraction, and matrix material can be tailored to achieve desired mechanical, thermal, and chemical properties for various applications.

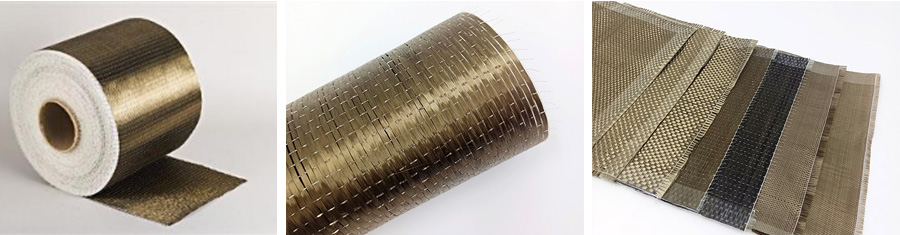

PRODUCTS SPECIFICATION

Style	Reinforcement Yarn	Weave	Tensile Intensity	Tensile Modulus	Elongation	Thickness	Width
Style	Reinforcement Yarn	Weave	MPa	GPa	%	mm	cm
BH-150	132Tex	Unidirection	≥3000	≥85	3.2	0.10	10-100
BH-200	132Tex	Unidirection	≥3000	≥85	3.2	0.12	10-100
BH-280	800Tex	Unidirection	≥2800	≥85	3.2	0.15	10-100
BH-300	800Tex	Unidirection	≥2800	≥85	3.2	0.15	10-100
BH-350	800Tex	Unidirection	≥2800	≥85	3.2	0.25	10-100
BH-600	800Tex	Unidirection	≥2800	≥85	3.2	0.4	10-100

APPLICATIONS

Basalt fiber unidirectional fabric finds applications in a wide range of industries, including aerospace, automotive, marine, sporting goods, and civil engineering. It is used in the manufacturing of structural components, such as aircraft wings, automotive chassis, wind turbine blades, and bridge reinforcements.

Frequently Asked Questions

What is Basalt Fiber Unidirectional (UD) Fabric?

It is a reinforcement material where basalt fibers are aligned in a single direction, providing maximum strength and stiffness along that specific axis.

What are the primary benefits of using basalt fiber?

Basalt fiber offers a high strength-to-weight ratio, excellent thermal stability, and natural resistance to chemical corrosion compared to traditional materials.

In which industries is UD basalt fabric commonly used?

It is widely used in aerospace for wings, automotive for chassis, renewable energy for turbine blades, and civil engineering for bridge reinforcement.

Can the specifications of the fabric be customized?

Yes, fiber orientation, volume fraction, and thickness can be tailored to meet specific engineering and mechanical requirements.

How does basalt fiber handle weight-sensitive applications?

Due to its high strength-to-weight ratio, it provides structural integrity while significantly reducing the overall weight of the components.

Is basalt fiber fabric resistant to environmental factors?

Yes, basalt fiber is naturally resistant to UV radiation, moisture, and chemical exposure, making it suitable for marine and outdoor applications.
