Custom High temperature resistance basalt fiber unidirectional woven fabric Supplier, Factories

1 / 3

Custom High temperature resistance basalt fiber unidirectional woven fabric Supplier, Factories

Send Inquiry

Product Description

Basalt Fiber Unidirectional Fabric is a kind of unidirectional fabric woven using basalt fiber untwisted roving in as radial direction, which has good radial mechanical properties. The monofilament is uniformly coated with an infiltrating agent suitable for phenolic and epoxy resins, suitable for polyester, epoxy, phenolic, nylon, and other resin properties. And there are coupling agents added in the infiltrating agent which are compatible with many kinds of resins, giving full play to the reinforcing effect of basalt fiber unidirectional cloth.

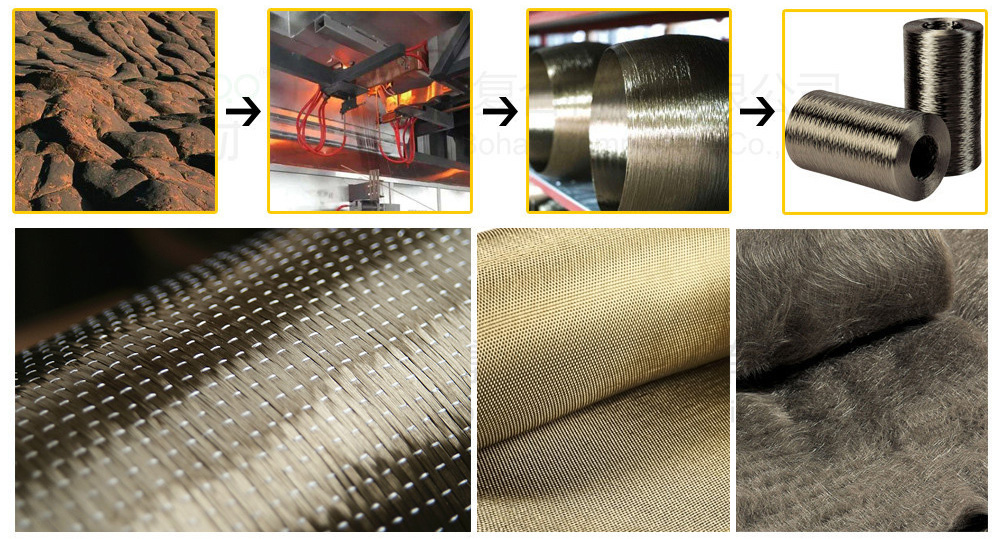

High quality UD basalt fiber fabric for building reinforcement

Product Specification

Style	Reinforcement Yarn	Weave	Tensile Intensity	Tensile Modulus	Elongation	Thickness	Width
Style	Reinforcement Yarn	Weave	MPa	GPa	%	mm	cm
BH-150	132Tex	Unidirection	≥3000	≥85	3.2	0.10	10-100
BH-200	132Tex	Unidirection	≥3000	≥85	3.2	0.12	10-100
BH-280	800Tex	Unidirection	≥2800	≥85	3.2	0.15	10-100
BH-300	800Tex	Unidirection	≥2800	≥85	3.2	0.15	10-100
BH-350	800Tex	Unidirection	≥2800	≥85	3.2	0.25	10-100
BH-600	800Tex	Unidirection	≥2800	≥85	3.2	0.4	10-100

Product Advantages

✓ The high strength of fiber cloth

✓ Good flexibility

✓ Convenient construction

✓ Corrosion resistance

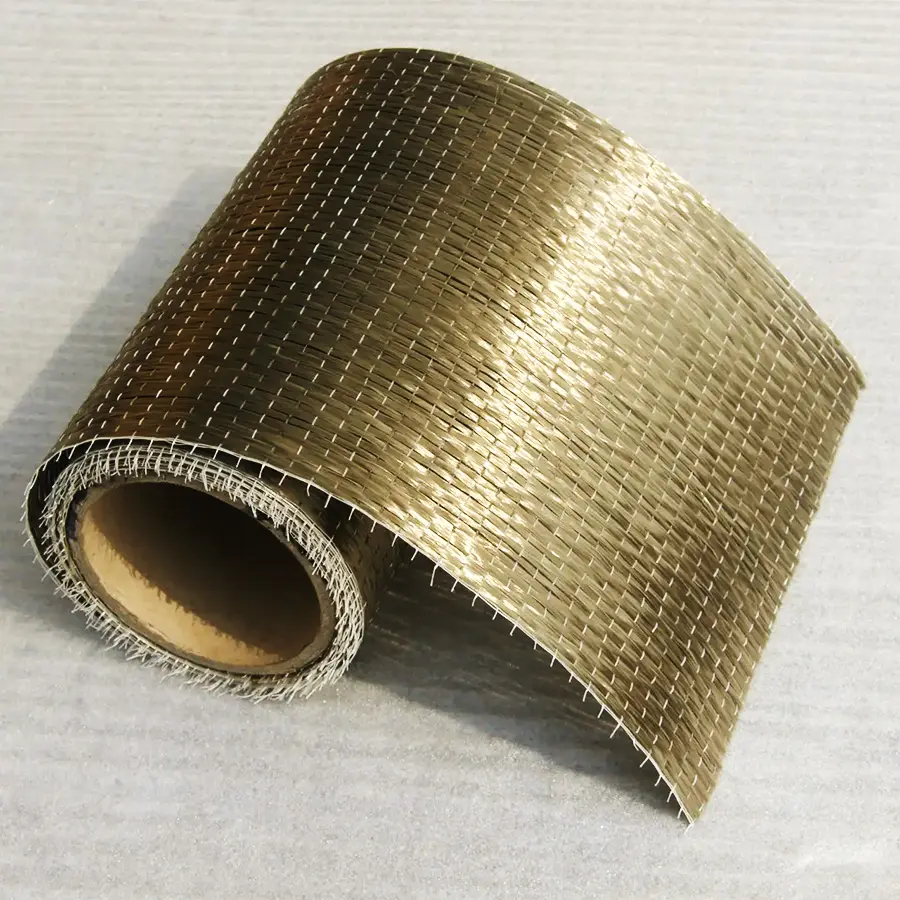

300GSM Basalt Unidirectional Fabric Cloth

Product Application

◈ Reinforcement, reinforcement, and repair of buildings and bridge structures.

◈ Radomes, engine parts, radar antennas.

◈ Tank armored vehicle hull, structural parts, wheel hubs, torsion bars and sleeves.

◈ Sports water skis, skis, surfboards, etc.

◈ Basalt fiber reinforced plastic sheet, bulletproof and explosion-proof sheet.

High Tensile Basalt Fiber Unidirectional Weave UD Fabric

Frequently Asked Questions

1. What is Basalt Fiber Unidirectional Fabric used for?

It is primarily used for structural reinforcement in buildings and bridges, as well as in automotive, aerospace, and sports equipment manufacturing due to its high tensile strength and durability.

2. Which resins are compatible with this basalt fabric?

The fabric is treated with a coupling agent that makes it compatible with several resins, including epoxy, polyester, phenolic, and nylon.

3. Why choose basalt fiber over other materials?

Basalt fiber offers excellent corrosion resistance, high flexibility, and significant mechanical strength, making it more durable in harsh environments than many traditional materials.

4. Can this fabric be used for marine applications?

Yes, its natural resistance to corrosion and water makes it ideal for surfboards, water skis, and other marine structural components.

5. Is the installation process difficult?

No, the product is designed for convenient construction. Its flexibility allows it to wrap around various shapes easily during the reinforcement process.

6. Does it provide bulletproof protection?

Yes, when used to create basalt fiber reinforced plastic sheets, it can be applied in the production of bulletproof and explosion-proof safety materials.
