Wholesale Basalt Fiber Cloth Plain and Twill Weave Fabric Product, Factories

Product Introduction

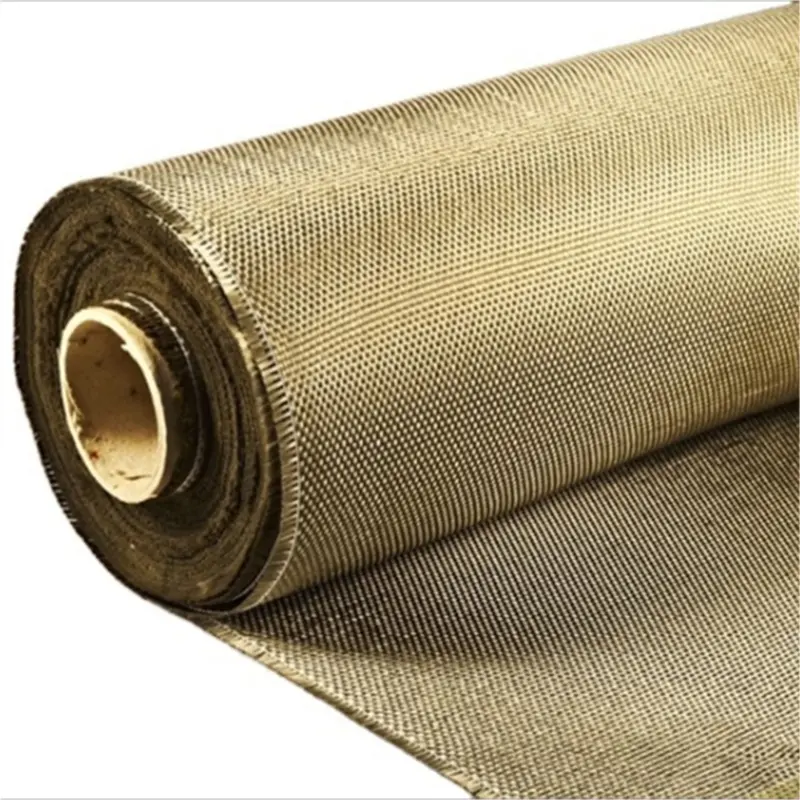

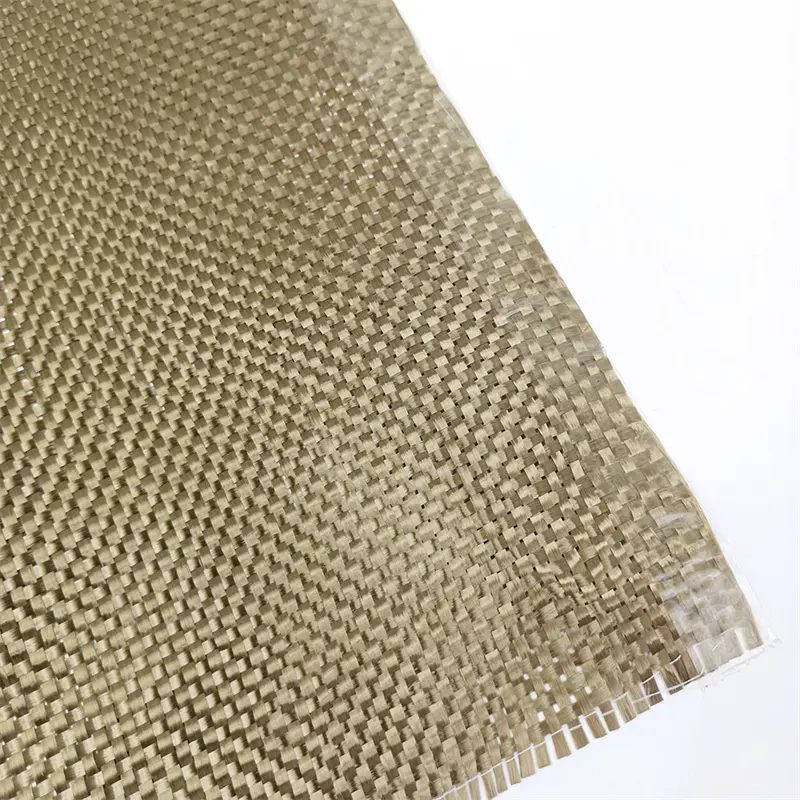

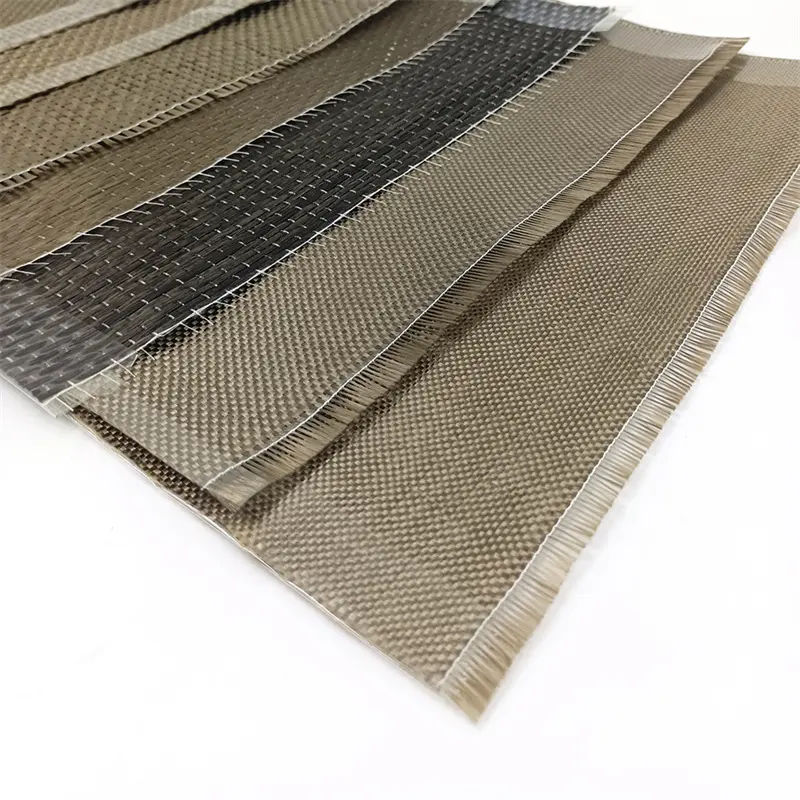

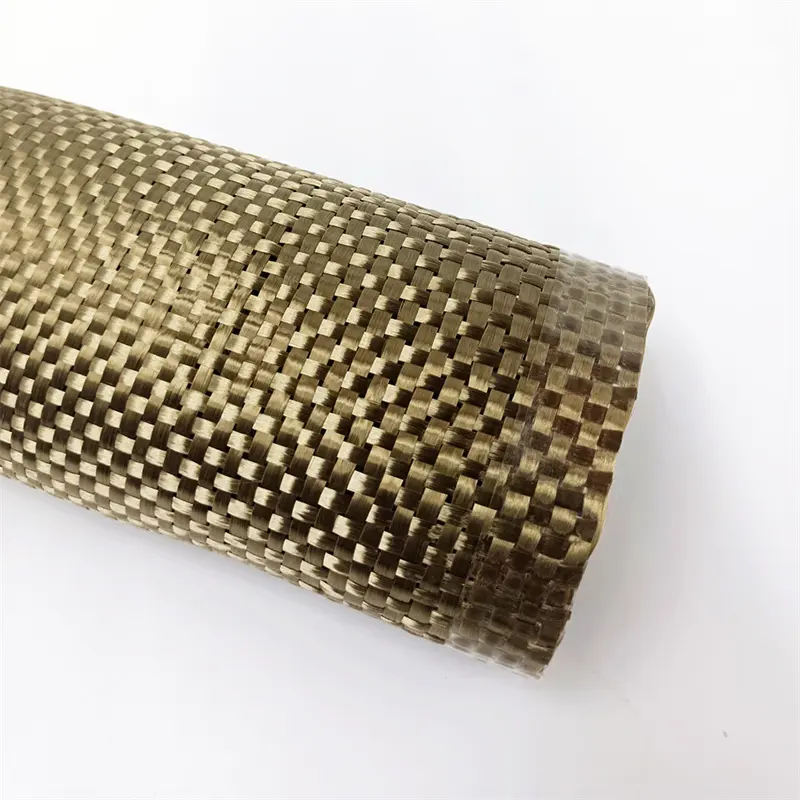

Basalt fiber cloth, also known as basalt fabric, is a type of textile material woven from high performance basalt fiber processed by different weaving techniques such as plain weave and twill weave.

Send Inquiry

Product Description

Flexible Fireproof High Temperature Woven Basalt Fiber Fabric Cloth

PRODUCT FEATURES

High tensile strength

Excellent resistance to heat, fire

Chemical corrosion resistance

Good insulation properties

Relatively low density

PRODUCTS SPECIFICATION

Style	Reinforcement Yarn		Weave	Fiber Count (10mm)		Weight	Thickness	Width
Style	Warp	Weft	Weave	Warp	Weft	g/m²	mm	cm
BH-A-110	90Tex	90Tex	Plain	6	6	110	0.10	100
BH-A-145	90Tex	90Tex	Plain	8	8	145	0.13	100
BH-B-145	90Tex	90Tex	Twill	8	8	145	0.13	100
BH-A-200	110Tex	110Tex	Plain	9	9	200	0.18	100
BH-B-200	110Tex	110Tex	Twill	9	9	200	0.18	100
BH-A-300	300Tex	300Tex	Plain	5	5	300	0.25	100
BH-B-300	300Tex	300Tex	Twill	5	5	300	0.25	100
BH-A-360	300Tex	300Tex	Plain	6	6	360	0.30	100
BH-B-360	300Tex	300Tex	Twill	6	6	360	0.30	100
BH-A-480	800Tex	800Tex	Plain	3	3	480	0.46	100
BH-A-600	800Tex	800Tex	Plain	4	3.5	600	0.48	100
BH-A-800	800Tex	800Tex	Plain	5	5	800	0.50	100

APPLICATIONS

Basalt fiber cloth finds applications in various industries due to its unique properties:

Composite materials: Used as reinforcement for automotive parts, marine components, and sporting goods.
Thermal insulation: Essential for heat shields, fire curtains, and protective barriers.
Electrical insulation: Applied where electrical conductivity needs to be minimized.
Civil engineering: Used in reinforcing concrete structures to provide additional strength and durability.

Frequently Asked Questions

What makes Basalt Fiber Fabric fireproof?

Basalt fiber is made from natural volcanic rock, which has an extremely high melting point (around 1450°C), making it naturally resistant to fire and high temperatures.

How does basalt fiber compare to carbon fiber?

Basalt fiber offers a more cost-effective solution with excellent chemical resistance and thermal stability, though carbon fiber typically has a higher strength-to-weight ratio.

Can basalt fiber cloth be used in marine environments?

Yes, its excellent resistance to chemical corrosion and moisture makes it ideal for marine components and boat manufacturing.

What are the common weave styles available?

We offer both Plain and Twill weave styles to suit different reinforcement and aesthetic requirements in composite manufacturing.

Is basalt fiber environmentally friendly?

Yes, basalt fiber is a green material produced from 100% natural volcanic rock without any chemical additives during the fiber-forming process.

What is the typical width of the fabric?

The standard width is 100cm, but various specifications are available depending on the style and application needs.
