Product Introduction

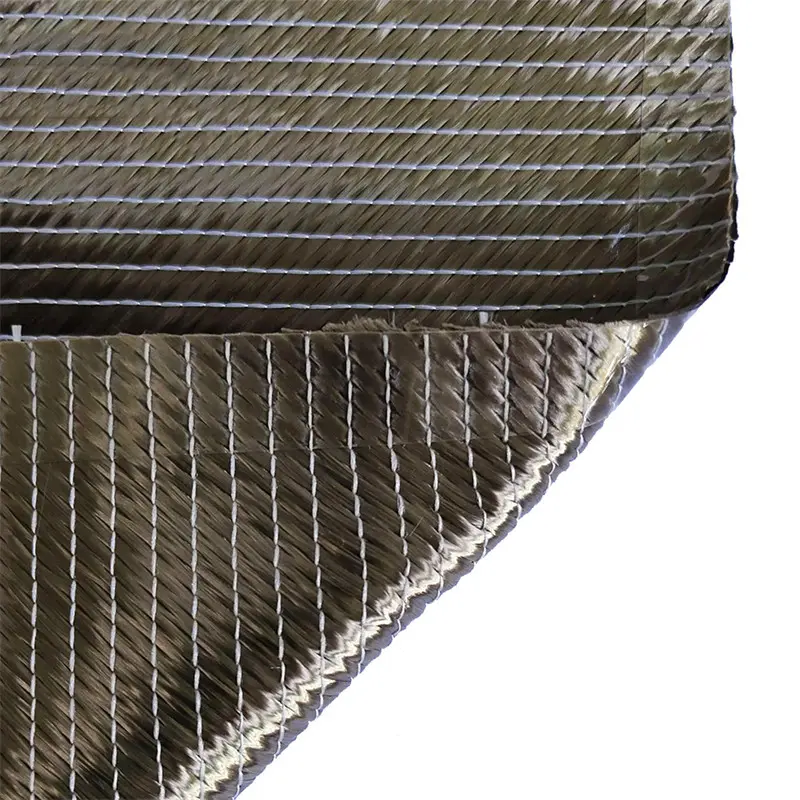

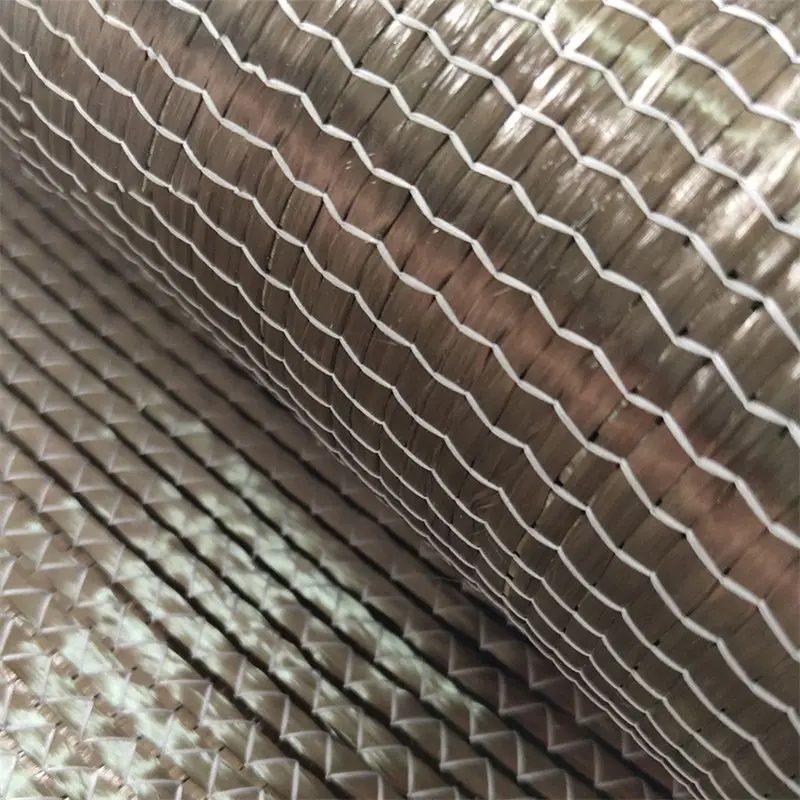

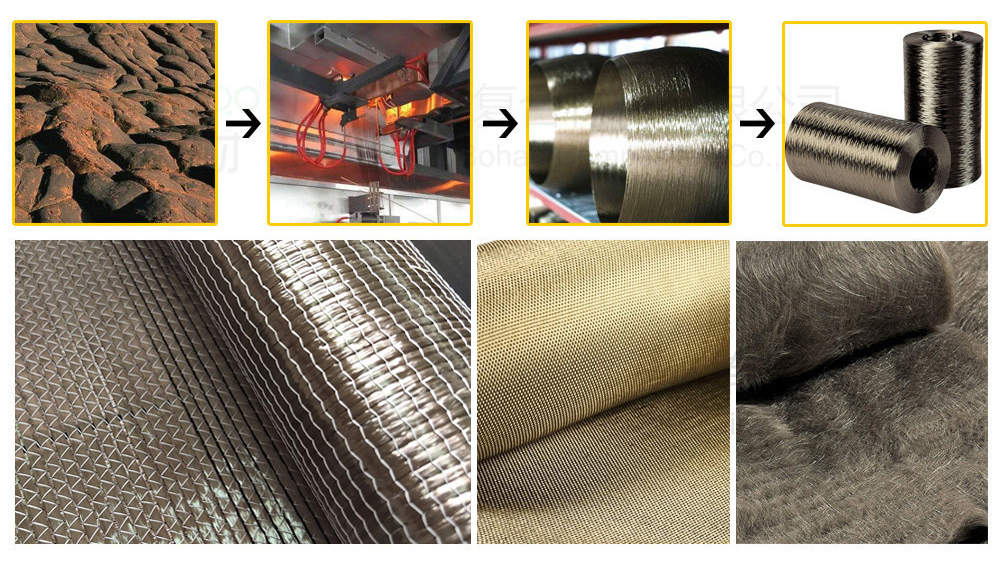

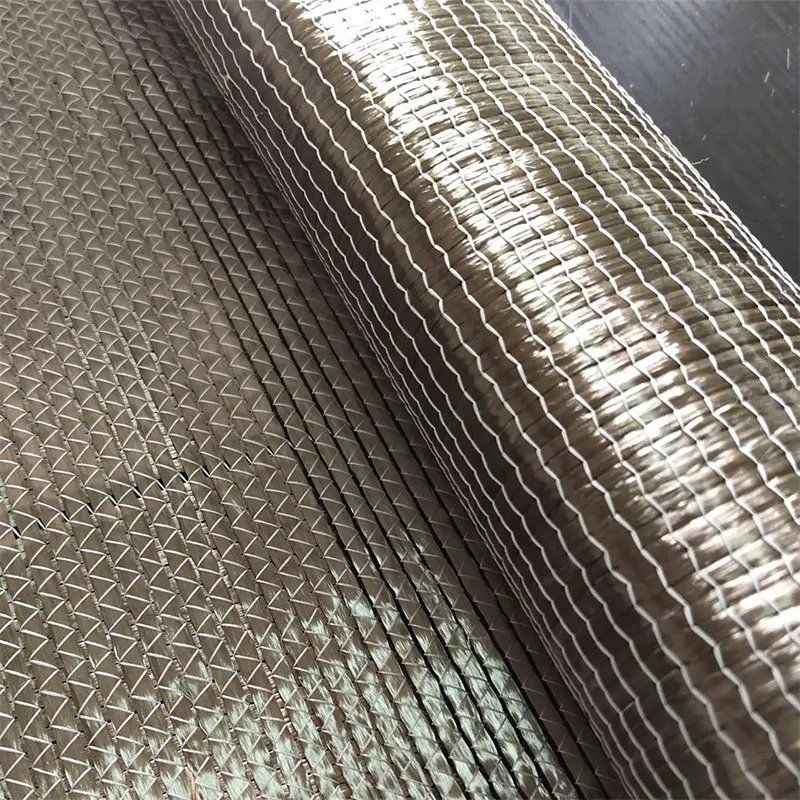

Basalt fiber biaxial fabric is made of high performance basalt fiber untwisted roving knitted with polyester threads. It has +45Â°/-45Â° and 0Â°/90Â° series.

Because of the structure, basalt fiber biaxial fabric has better mechanical and mechanical properties.

Send Inquiry

Product Description

PRODUCT FEATURES

Biaxial Structure

Consists of two layers of fiber fabric stacked perpendicular to each other, providing superior strength and stiffness to withstand mechanical loads effectively.

High Strength

Utilizing high-quality basalt fibers, it exhibits exceptional tensile and compressive strength for high-demand applications.

Excellent Heat Resistance

Stable operation in high-temperature environments without deformation, making it ideal for thermal load endurance.

Corrosion Resistance

Outstanding resistance to chemical media such as acids and alkalis, ensuring long-term stability in harsh environments.

Lightweight

High efficiency material that reduces overall structure weight while maintaining structural integrity.

Ease of Processing

Excellent flexibility and plasticity allow for easy manufacturing into complex shapes and sizes.

PRODUCTS SPECIFICATION

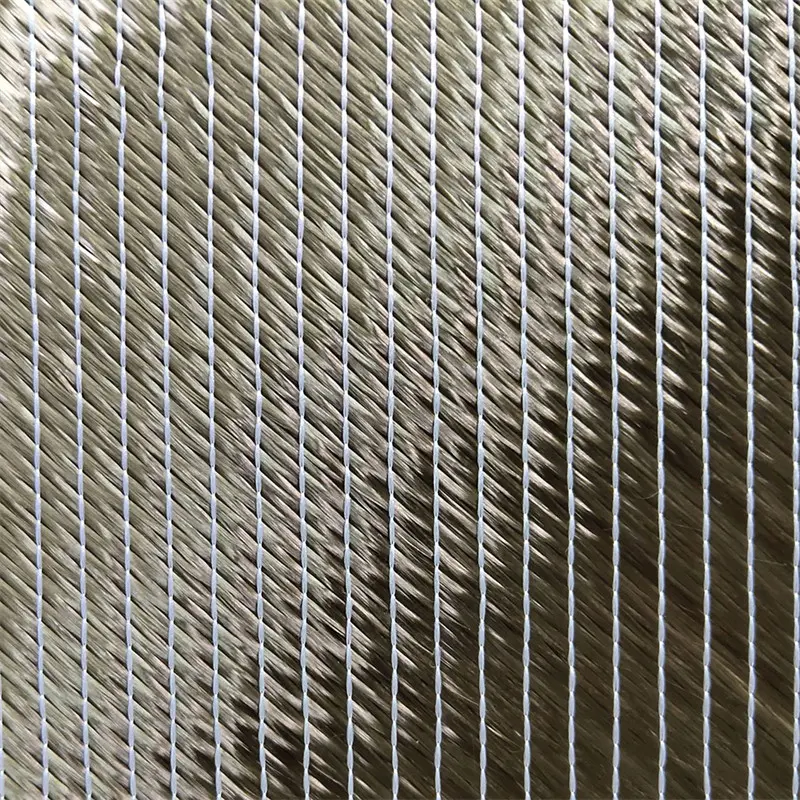

Basalt Biaxial Fabric +45°/-45°

Model	BX600 (45°/-45°)-1270
Resin fit type	UP, EP, VE
Fiber diameter (um)	16um
Fiber density (tex)	300±5%
Weight (g/㎡)	600g±5%
+45 density (Root/cm)	4.33±5%
-45 density (Root/cm)	4.33±5%
Tensile strength (Laminate) Mpa	≥160
Standard width (mm)	1270
Other weights (customizable)	350g, 450g, 800g, 1000g

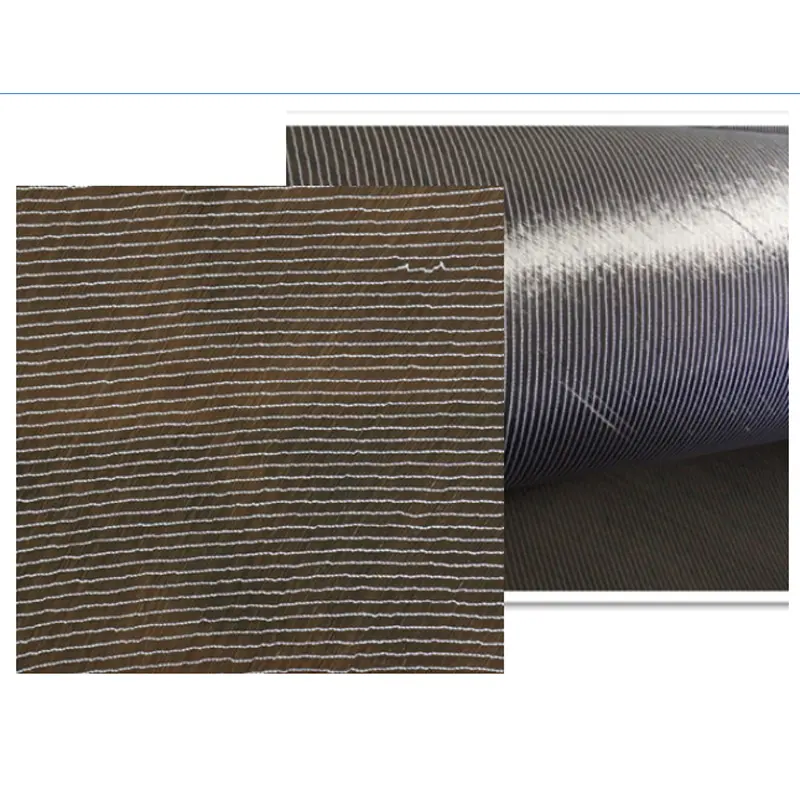

Basalt Biaxial Fabric 0°/90°

Model	BLT1200 (0°/90°)-1270
Resin fit type	UP, EP, VE
Fiber diameter (um)	16
Fiber density (tex)	2400±5%
Weight (g/㎡)	1200g±5%
Warp density (root/cm)	2.75±5%
Weft density (root/cm)	2.25±5%
Warp breaking strength (N/50mm)	≥18700
Weft breaking strength (N/50mm)	≥16000
Standard width (mm)	1270
Other weights (customizable)	350g, 450g, 600g, 800g, 1000g

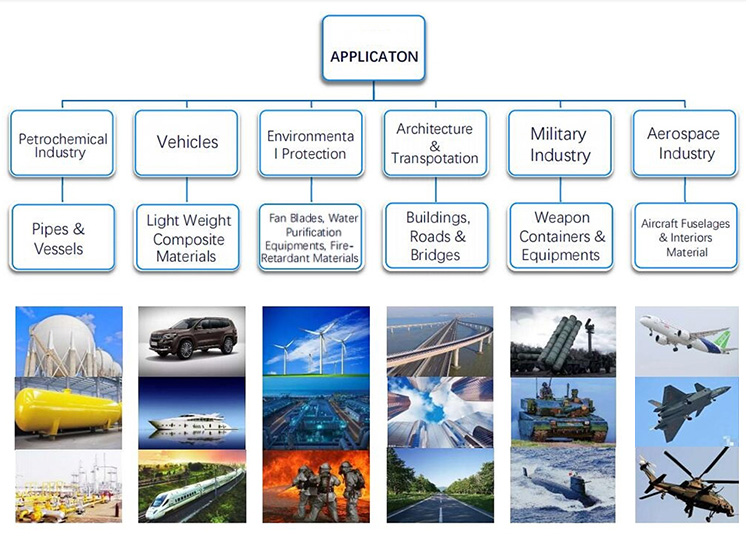

APPLICATIONS

Our basalt biaxial fabric is widely utilized across various high-performance industries due to its versatile mechanical properties:

Wind Power

Ship Building

Automotive

High-speed Trains

Sporting Goods

Construction

Questions & Answers

What is the advantage of the biaxial structure in basalt fabric?

The biaxial structure consists of layers stacked perpendicular to each other, which provides balanced strength and improved stiffness, allowing the material to handle multi-directional mechanical loads.

Which resins are compatible with this basalt fabric?

Our basalt biaxial fabric is designed to be compatible with Unsaturated Polyester (UP), Epoxy Resin (EP), and Vinyl Ester (VE) resins.

Can I order custom weights for the fabric?

Yes, while our standard weights are 600g and 1200g, we offer customization for other specifications such as 350g, 450g, 800g, and 1000g.

How does basalt fabric perform in high-temperature environments?

Basalt fiber exhibits excellent heat resistance. It remains stable and maintains its structural integrity without deformation even under high-temperature loads.

Is the material resistant to chemical corrosion?

Yes, basalt fiber biaxial fabric shows strong resistance to chemical media, including acids and alkalis, making it suitable for harsh chemical environments.

What are the primary industries using this material?

It is mainly used in wind power generation, marine (boats), automotive manufacturing, high-speed rail, sports equipment, and modern construction projects.
