Wholesale Corrosion-resistant Basalt Fiber Unidirectional Fabric Manufacturers, Factories

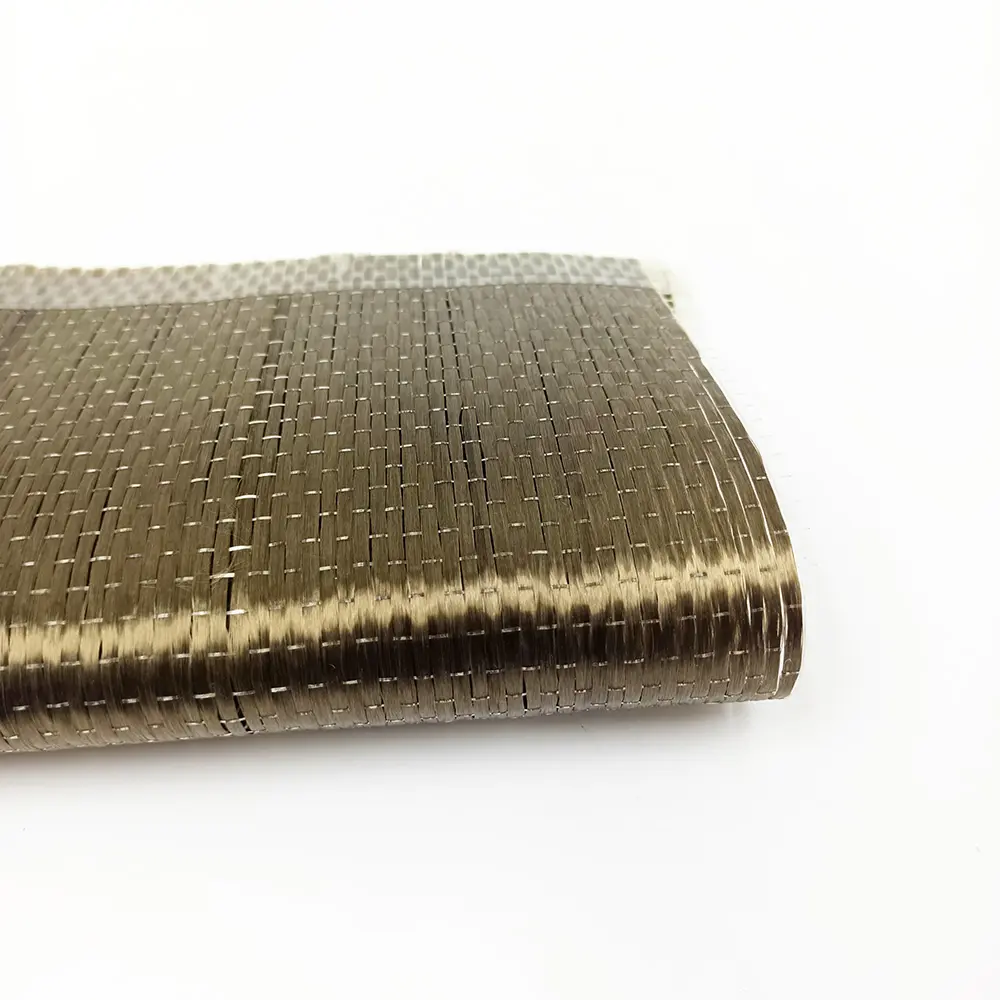

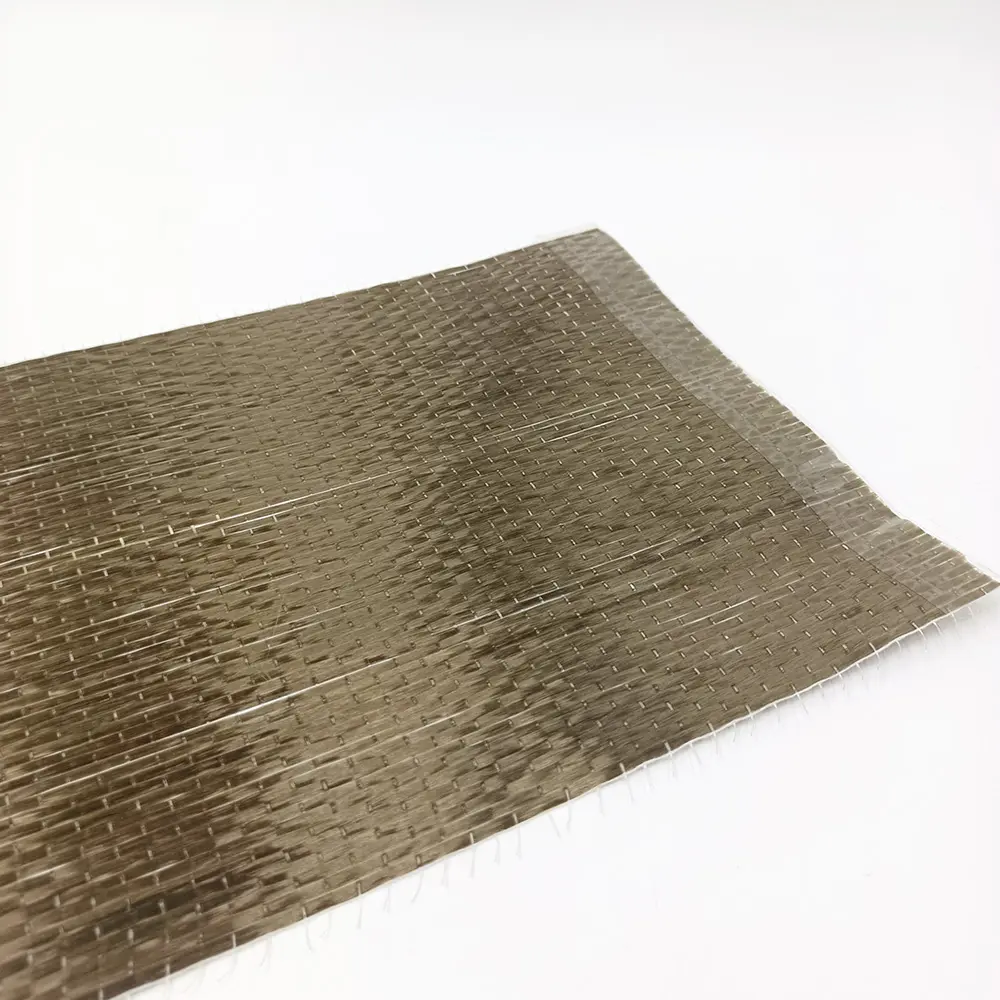

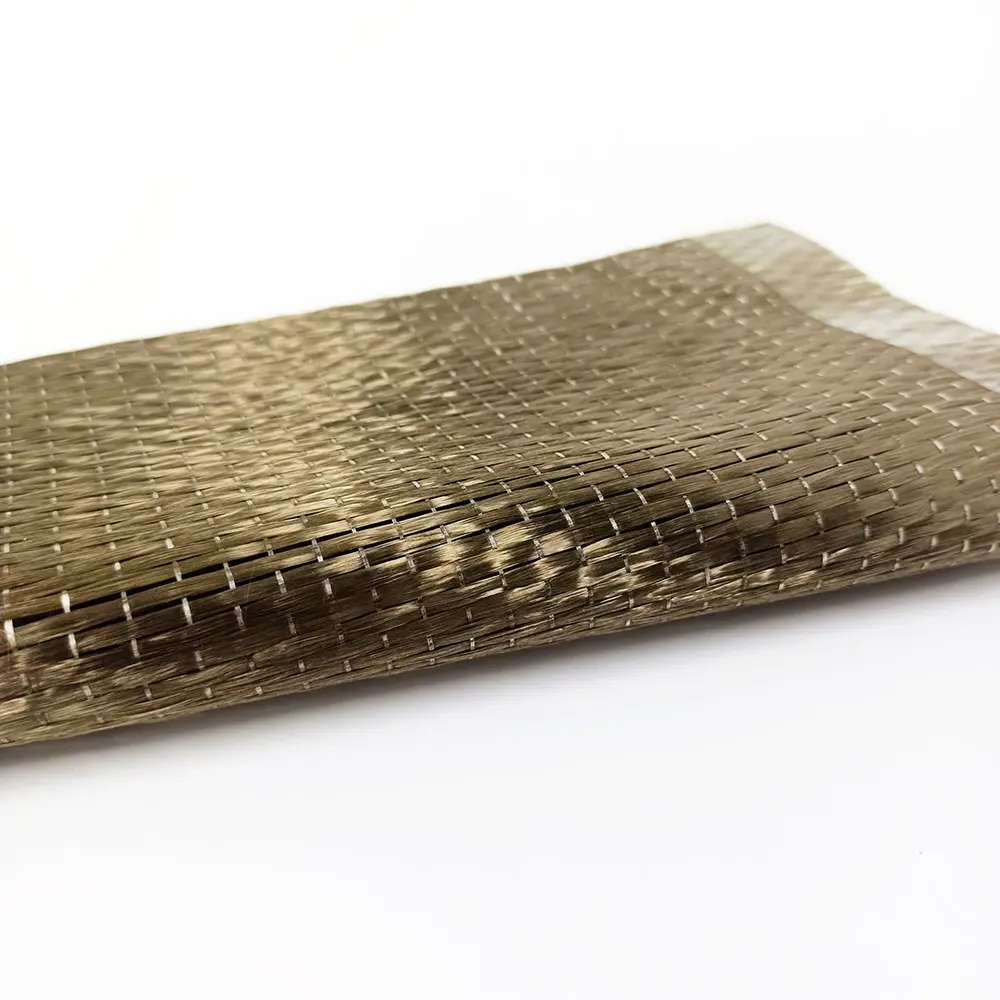

Basalt Fiber Unidirectional Fabric is a kind of unidirectional fabric woven using basalt fiber untwisted roving in as radial direction, which has good radial mechanical properties. The monofilament is uniformly coated with an infiltrating agent suitable for phenolic and epoxy resins, suitable for polyester, epoxy, phenolic, nylon, and other resin properties. And there are coupling agents added in the infiltrating agent which are compatible with many kinds of resins, giving full play to the reinforcing effect of basalt fiber unidirectional cloth.

Send Inquiry

Product Description

Key Product Features

High Strength

Basalt fiber cloth exhibits high tensile strength and excellent resistance to breakage, providing superior reinforcement to composite materials.

Heat Resistance

Basalt fibers have excellent heat resistance properties, allowing the cloth to withstand high temperatures without significant degradation.

Chemical Resistance

Basalt fibers are resistant to many chemicals, making the cloth suitable for applications in corrosive environments.

Lightweight Design

Basalt fiber cloth is lightweight compared to traditional materials like steel, contributing to significant weight reduction.

Proven Durability

The cloth is highly durable and has a long service life, making it suitable for the most demanding industrial applications.

Technical Parameters

Style	Reinforcement Yarn		Weave	Fiber Count (10mm)		Weight	Thickness	Width
Style	Warp	Weft	Weave	Warp	Weft	g/m²	mm	cm
BH-A-110	90Tex	90Tex	Plain	6	6	110	0.10	100
BH-A-145	90Tex	90Tex	Plain	8	8	145	0.13	100
BH-B-145	90Tex	90Tex	Twill	8	8	145	0.13	100
BH-A-200	110Tex	110Tex	Plain	9	9	200	0.18	100
BH-B-200	110Tex	110Tex	Twill	9	9	200	0.18	100
BH-A-480	800Tex	800Tex	Plain	3	3	480	0.46	100
BH-A-600	800Tex	800Tex	Plain	4	3.5	600	0.48	100

Product Applications

1. Construction Field

Waterproof protection: roofs, basements, and walls.
Enclosure structures for retaining walls.
Indoor partition walls and ceilings for sound insulation.

2. Industrial Applications

Pipeline and vessel protection for storage tanks.
Waterproof coatings for liquid/gas infiltration prevention.
Aerospace precision instrument manufacturing.

3. Transportation & Military

Tunnels and guardrail protection.
Stealth materials and bulletproof shields.

4. Sports & High-Performance Buildings

Swimming pool and ballpark enclosures.
Energy-saving breathing barriers for modern architecture.

Frequently Asked Questions

What are the main advantages of basalt fiber cloth over fiberglass?

Basalt fiber cloth offers significantly higher tensile strength, better chemical resistance (especially to acids and alkalis), and a wider service temperature range compared to traditional E-glass fibers.

Is this fabric suitable for outdoor construction?

Yes, its superior resistance to UV radiation and moisture makes it an ideal choice for external wall reinforcement and bridge repair projects.

Can it be used with epoxy resins?

Absolutely. Basalt fiber cloth is compatible with various resin systems, including epoxy, polyester, and vinyl ester, ensuring excellent adhesion in composite structures.

What temperature can basalt fiber withstand?

Basalt fiber is inherently fire-resistant and can typically operate in environments from -260°C to +700°C without losing its structural integrity.

Is basalt fiber an eco-friendly material?

Yes, it is made from 100% natural volcanic rock. The production process is cleaner than carbon or glass fiber, and the material is non-toxic and recyclable.
