Custom Basalt Fiber Mesh For Tunnel Reinforcement Quotes, Supplier

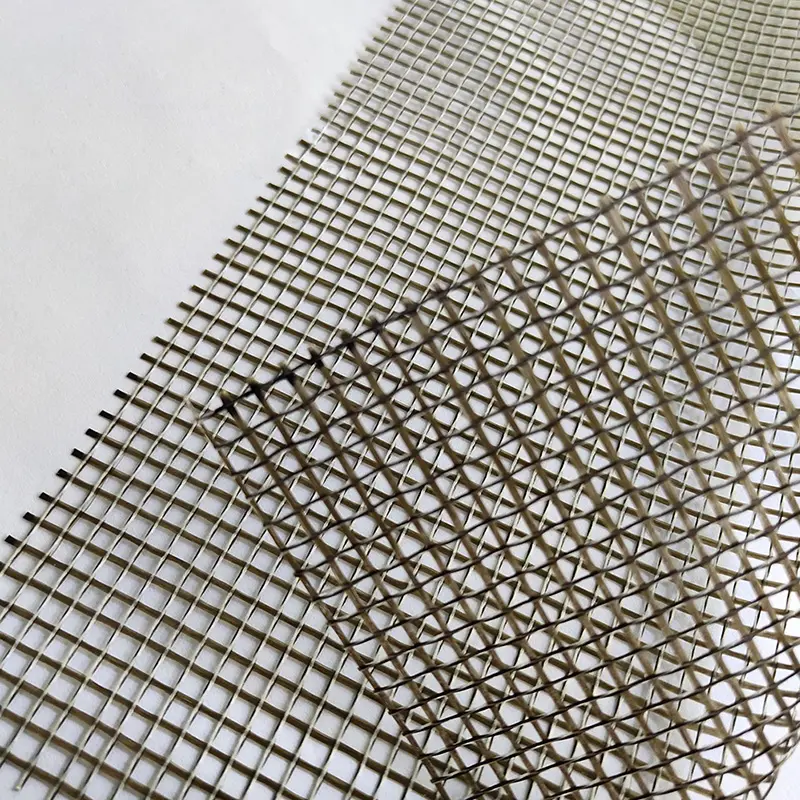

Basalt fiber mesh is a kind of reinforcement product, which uses the anti-acid & alkali basalt continuous filament (BCF) to produce gridding base material with advanced knitting process, sized with silane and coated with PVC.
The stable physical properties make it both high and low temperature resistant and highly resistant to deformation. Both warp and weft directions are high tensile strength and low elongation.

Send Inquiry

Product Description

Basalt fiber mesh is a kind of reinforcement product, which uses the anti-acid & alkali basalt continuous filament (BCF) to produce gridding base material with advanced knitting process, sized with silane and coated with PVC. The stable physical properties make it both high and low temperature resistant and highly resistant to deformation. Both warp and weft directions are high tensile strength and low elongation.

Product Features

✔ High Tensile Strength: Provides excellent reinforcement, enhancing the structural integrity of concrete and masonry.

✔ Corrosion Resistance: Unlike steel, basalt fiber mesh is immune to rust and corrosion, making it ideal for use in humid or chemically aggressive environments.

✔ Lightweight: Easy to handle, transport, and install, reducing labor and construction time.

✔ Thermal and Electrical Insulation: Non-conductive and resistant to high temperatures, making it suitable for specialized applications.

✔ Eco-Friendly: Made from natural basalt rock, it is sustainable, non-toxic, and recyclable.

Product Specification

Mesh Size (mm)	Fabric Weave	Areal Weight (g/m²)	Maximum Width (cm)	Tensile Breaking Strength (N/5cm)
2.5 * 2.5	Twist weave	100 ± 5	220	≥ 800
5 * 5		160 ± 8		≥ 1500
10 * 10		250 ± 12		≥ 2000

Applications

Reinforcement of concrete structures, such as walls, slabs, and foundations.
Strengthening masonry structures, including brickwork and blockwork.
Reinforcement of soft soil sub-grades of various roads such as highways, railways and municipal roads to improve strength and delay reflection cracks.
Reinforcement and isolation of dams and river channels in water conservancy projects to enhance bearing capacity and stability.
Used for reinforcement of embankment slopes and retaining walls to enhance overall strength.

Frequently Asked Questions

Q1: What is basalt fiber mesh made of?

It is produced from basalt continuous filament (BCF) derived from natural basalt rock, which is then knitted and coated with PVC for enhanced durability.

Q2: Why is basalt fiber mesh preferred over steel reinforcement?

Unlike steel, basalt mesh is completely corrosion-resistant and immune to rust. It is also significantly lighter, making it easier to transport and install while providing high tensile strength.

Q3: Can it be used in chemically aggressive environments?

Yes, its anti-acid and alkali properties make it highly stable and resistant to chemical degradation, ideal for industrial and coastal applications.

Q4: How does it improve road construction?

When used in soft soil sub-grades, it improves the load-bearing capacity and effectively delays the appearance of reflection cracks on road surfaces.

Q5: Is basalt fiber mesh environmentally friendly?

Yes, basalt is a natural volcanic rock. The manufacturing process is sustainable, and the final product is non-toxic and recyclable.

Q6: What temperature range can it withstand?

Basalt fiber mesh features stable physical properties that make it resistant to both high and low temperatures, maintaining its structural integrity under various climatic conditions.
