Product Description
Basalt Fiber Mesh is a high-performance reinforcement product engineered using anti-acid and alkali basalt continuous filament (BCF). Utilizing an advanced knitting process, the gridding base material is sized with silane and coated with PVC to ensure maximum durability.
Its stable physical properties provide exceptional resistance to both high and low temperatures while remaining highly resistant to deformation. Both warp and weft directions exhibit high tensile strength and low elongation.
Key Features
- Higher mechanical strength and modulus, highly resistant to aggressive chemical environments.
- Environmentally friendly material based on naturally occurring basalt rock found worldwide.
- Exceptional tensile strength with minimal elongation.
- No long-term creep and superior thermal stability across temperature ranges.
- Robust resistance to biological erosion and extreme climate changes.
- Excellent affinity and bonding compatibility with both asphalt and cement concrete.
Technical Specifications
| Mesh Size (mm) |
Fabric Weave |
Areal Weight (g/m²) |
Maximum Width (cm) |
Tensile Strength (N/5cm) |
| 2.5 * 2.5 |
Twist weave |
100 ± 5 |
220 |
≥ 800 |
| 5 * 5 |
160 ± 8 |
≥ 1500 |
| 10 * 10 |
250 ± 12 |
≥ 2000 |

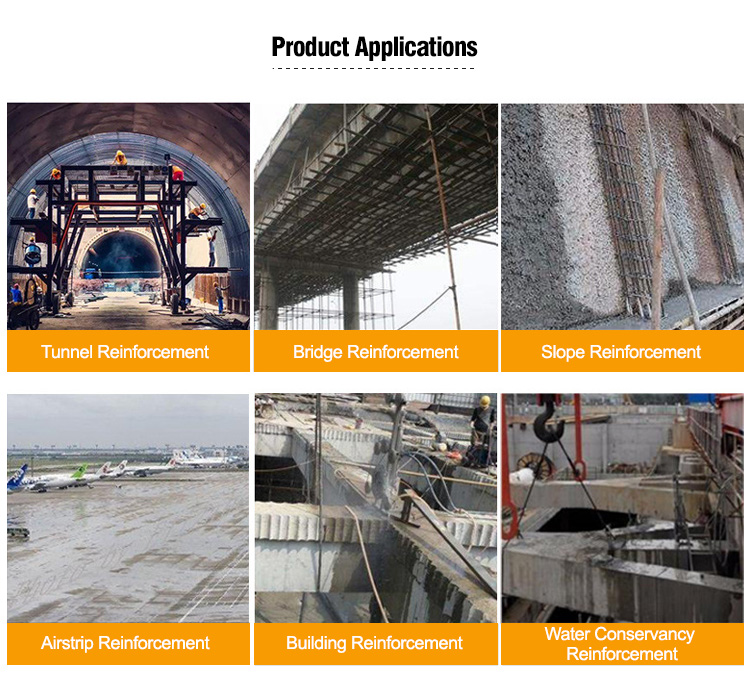

Main Applications
Basalt fiber mesh is highly versatile and serves as a critical reinforcement component in modern infrastructure:
- Road Construction: Reinforces asphalt and cement concrete pavements to prevent reflective cracking from traffic loads and temperature changes, potentially reducing asphalt thickness by up to 20%.
- Soil & Foundation: Stabilizes weak soils and creates secure foundations for industrial or residential buildings and retaining walls.
- Slope Stabilization: Effectively protects embankments and slopes from environmental erosion and structural destruction.
- Concrete Structures: Acts as a non-corrosive alternative to steel wire mesh in bridge decks, industrial flooring, and various concrete elements.
Frequently Asked Questions
What makes Basalt Fiber Mesh better than traditional reinforcement?
Basalt fiber mesh is naturally corrosion-resistant, has higher mechanical strength than many traditional materials, and is environmentally friendly as it is derived from volcanic rock.
Can it be used in high-temperature environments?
Yes, basalt fiber mesh possesses excellent thermal stability and is resistant to both high and low temperature fluctuations without losing structural integrity.
How does it benefit road construction?
By reinforcing the pavement, it prevents reflective cracking and can significantly prolong the service life of the road while allowing for a reduction in asphalt thickness.
Is the mesh compatible with cement and asphalt?
Absolutely. It is specifically designed to have a high affinity with both asphalt and cement concrete, ensuring a strong bond within the structure.
What are the available mesh sizes?
Standard sizes include 2.5x2.5mm, 5x5mm, and 10x10mm, catering to different reinforcement requirements and tensile strength needs.
Does basalt fiber mesh corrode like steel?
No, unlike steel, basalt fiber mesh is naturally resistant to acids, alkalis, and moisture, making it a superior non-corrosive alternative for harsh environments.
