Product Description

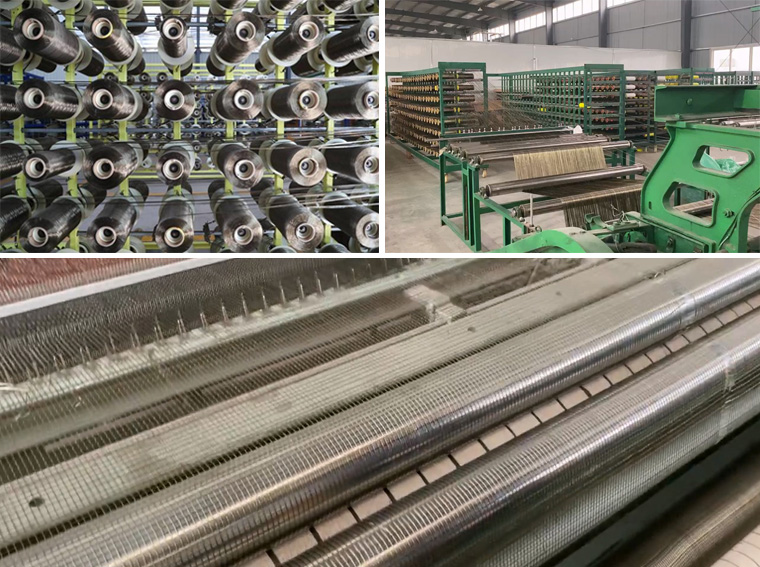

Basalt Mesh Fabric is a high-performance pavement and basement reinforcement product. Utilizing acid and alkali resistant Basalt Continuous Filaments (BCF) and an advanced weaving process, this mesh fabric substrate is brine set and coated with asphalt or polymers to provide superior reinforcement.
Specifically designed for road and highway pavements, Basalt mesh fabrics extend pavement life by significantly reducing reflective cracking caused by traffic loading, aging, and temperature cycling. By using Basalt reinforcing mesh, the service life of pavements can be extended between repairs, and the required thickness of asphalt concrete can be reduced by up to 20%.
Product Specification
| Mesh Size (mm) |
Fabric Weave |
Areal Weight (g/m²) |
Maximum Width (cm) |
Tensile Strength (N/5cm) |
| 2.5 * 2.5 |
Twist weave |
100 ± 5 |
220 |
≥ 800 |
| 5 * 5 |
160 ± 8 |
≥ 1500 |
| 10 * 10 |
250 ± 12 |
≥ 2000 |
Key Product Features
🛡️
High Strength: Superior tensile strength compared to traditional reinforcement materials.
🧪
Corrosion Resistance: Excellent resistance to acids, alkalis, and chemical exposure in harsh environments.
🔥
High Temperature Resistance: Maintains structural integrity and performance even in high-heat conditions.
⚖️
Lightweight: Low weight design facilitates easier transportation and faster construction.
🌿
Eco-Friendly: Manufactured from natural basalt rock; fully recyclable and environmentally sustainable.

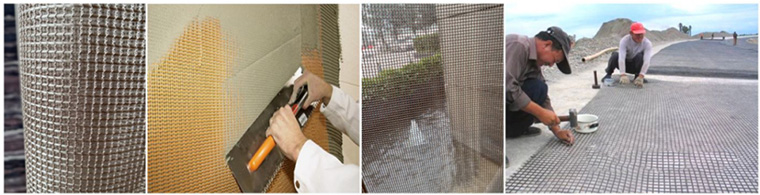

Primary Applications
🏗️
Building Reinforcement: Used for walls, floors, beams, and columns to enhance seismic performance.
🛣️
Road Engineering: Reduces surface cracking and extends the operational life of highway pavements.
🌉
Bridge Engineering: Improves load-bearing capacity and long-term durability of bridge structures.
🚇
Tunnel Engineering: Enhances structural stability when applied to tunnel linings.
💧
Hydraulic Engineering: Improves erosion resistance in dams and water channels.
Frequently Asked Questions
What are the main benefits of using Basalt Mesh Fabric in road construction?
It reduces reflective cracking, extends the intervals between road repairs, and can reduce the required asphalt thickness by up to 20%.
Is Basalt Mesh resistant to chemical corrosion?
Yes, it is highly resistant to acids, alkalis, and various chemical agents, making it ideal for harsh soil and weather conditions.
How does the strength of Basalt Mesh compare to other materials?
Basalt Mesh offers very high tensile strength, which is superior to many traditional reinforcement materials like standard fiberglass in certain applications.
Can this fabric be used in high-temperature environments?
Absolutely. Basalt fiber naturally maintains its performance characteristics even at high temperatures, which is critical during hot asphalt application.
Is Basalt Mesh an environmentally friendly product?
Yes, it is made from natural basalt rock, which is eco-friendly, non-toxic, and fully recyclable.
What industries commonly use Basalt reinforcing mesh?
It is widely used in civil engineering, road and highway construction, bridge reinforcement, tunnel lining, and hydraulic dam engineering.
