Custom Basalt Fiber Surfacing Tissue Mat For Thermal Protection Manufacturer, Factories

1 / 5

Custom Basalt Fiber Surfacing Tissue Mat For Thermal Protection Manufacturer, Factories

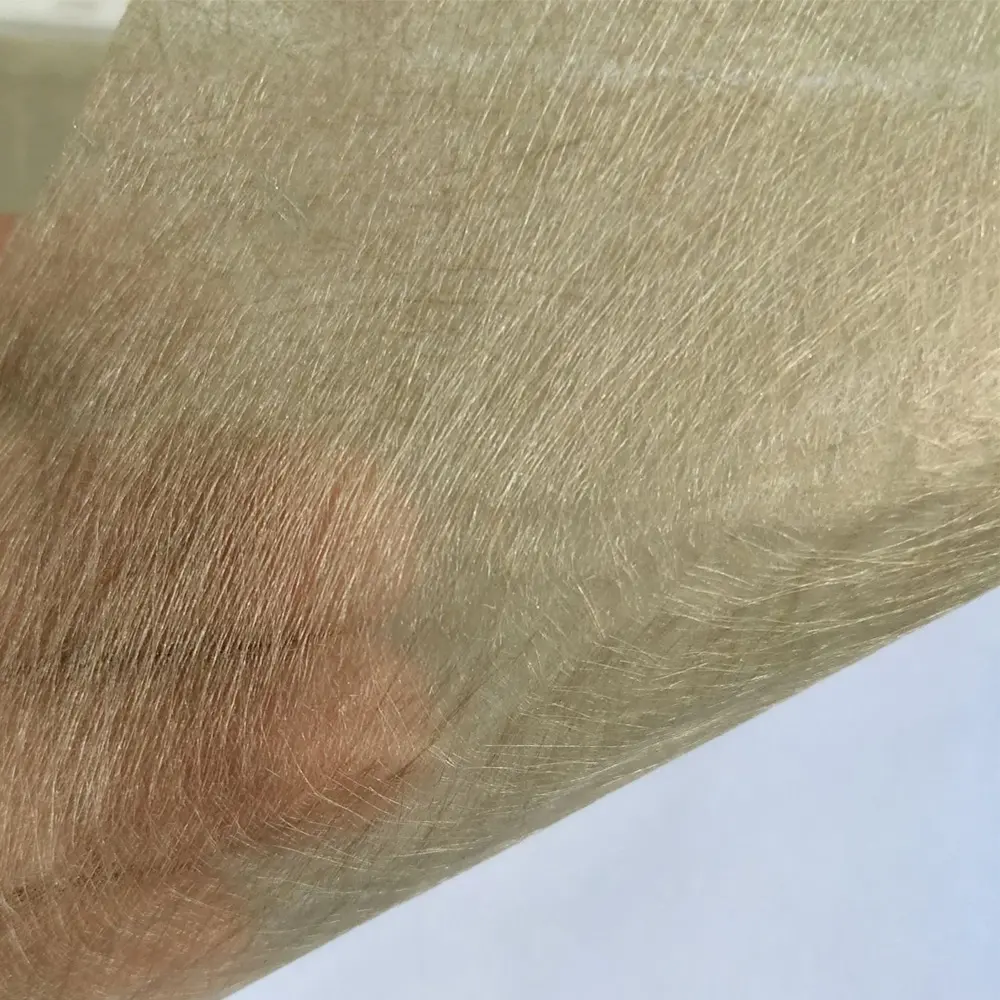

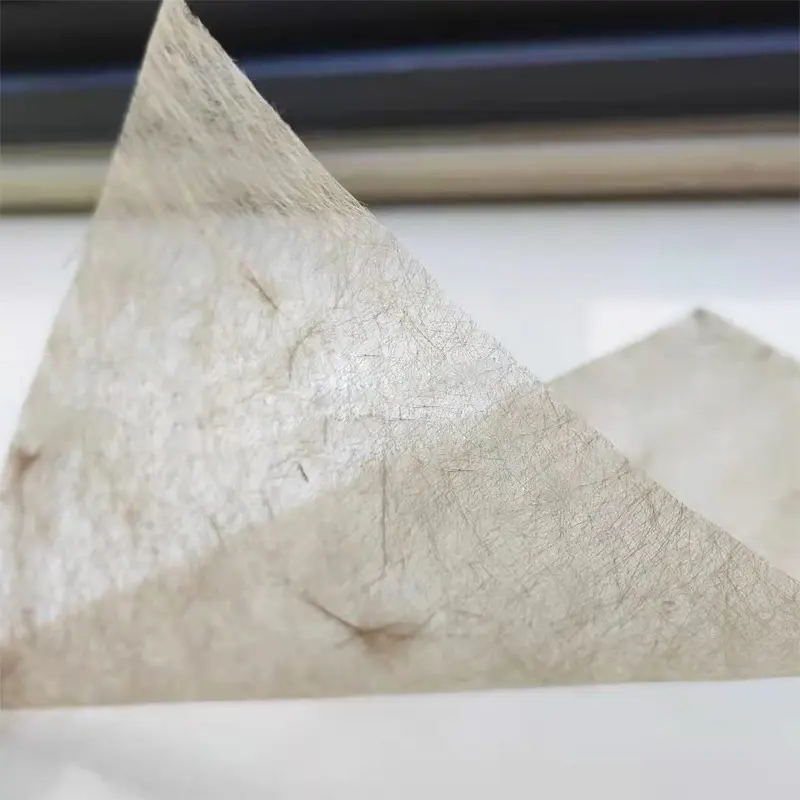

Basalt fiber surfacing tissue mat is a non-woven or composite functional material made of basalt fibers, usually in the form of a thin layer of gasket or face reinforcement. It combines the high temperature resistance, corrosion resistance and high strength characteristics of basalt fiber with lightweight, flexible or sealing properties, and is commonly used in high temperature protection, sealing, sound and heat insulation and other fields.

Send Inquiry

Product Description

Product Feature

Smooth Surface Creates a smooth and even surface finish, enhancing the aesthetics and appearance of composite products.

Protection Acts as a protective layer, providing resistance against abrasion, impact, and environmental factors.

Compatibility Compatible with various resin systems, including polyester, epoxy, and vinyl ester.

Chemical Resistance Provides added protection against corrosive substances and chemical exposure.

Heat Resistance Excellent heat resistance, ensuring the mat remains stable under high-temperature conditions.

Product Parameters

Filament Diameter (μm)	Areal Weight (g/m²)	Width (mm)	Organic Matter Content (%)	Moisture Content (%)	Resin Compatibility
11	30	1000	6-13	≤0.1	Epoxy, Polyester
11	40	1000	6-26	≤0.1	Epoxy, Polyester
11	50	1000	6-26	≤0.1	Epoxy, Polyester
11	100	1000	6-26	≤0.1	Epoxy, Polyester

Application

High temperature sealing gaskets

Internal combustion engine exhaust pipe, turbocharger sealing; industrial pipe flanges (instead of asbestos).

Thermal barrier

Battery pack thermal management (blocking heat transfer); aerospace fire protection insulation.

Sound absorbing and noise reducing

Automotive engine compartment, industrial equipment acoustic mats.

Reinforced composite top layer

Surface layer for composite panels to enhance impact and abrasion resistance.

Frequently Asked Questions

What are the main benefits of using Basalt Fiber Surfacing Tissue Mat?

It primarily provides a smooth aesthetic finish to composites while offering excellent heat resistance, chemical stability, and protection against abrasion and environmental factors.

Which resin systems is this mat compatible with?

The surfacing tissue mat is highly versatile and compatible with Epoxy, Polyester, and Vinyl Ester resin systems.

Can this mat be used for fire protection?

Yes, due to its excellent heat resistance, it is used in thermal barriers for battery packs and fire protection insulation in aerospace equipment.

What is the standard width and weight available?

The standard width is 1000mm, with areal weights ranging from 30g/m² to 100g/m² to suit different application needs.

Is it a suitable replacement for asbestos gaskets?

Yes, it is often used for high-temperature sealing of industrial pipe flanges as a safer and effective alternative to asbestos gaskets.

How does it affect the surface of composite panels?

It creates a uniform, smooth surface layer that not only looks better but also increases the impact and abrasion resistance of the composite structure.
