Custom Basalt Fiber Woven Roving Products, Suppliers

The basalt fiber cloth of our company adopts twisted or untwisted basalt continuous fibers as raw materials,and is woven with plain,twill and satin weaves.Divided into unidirectional cloth,bidirectional cloth and multi-directional cloth.Relying on the temperature resistance,corrosion resistance,high strength and modulus,and electrical insulation of basalt fiber,it is processed by handlay-up, pultrusion,autoclave,vacuum introduction,winding,resin transfer and other processes,combined with unsaturated polyester resin (UP)or epoxy resin(EP).

Send Inquiry

Product Description

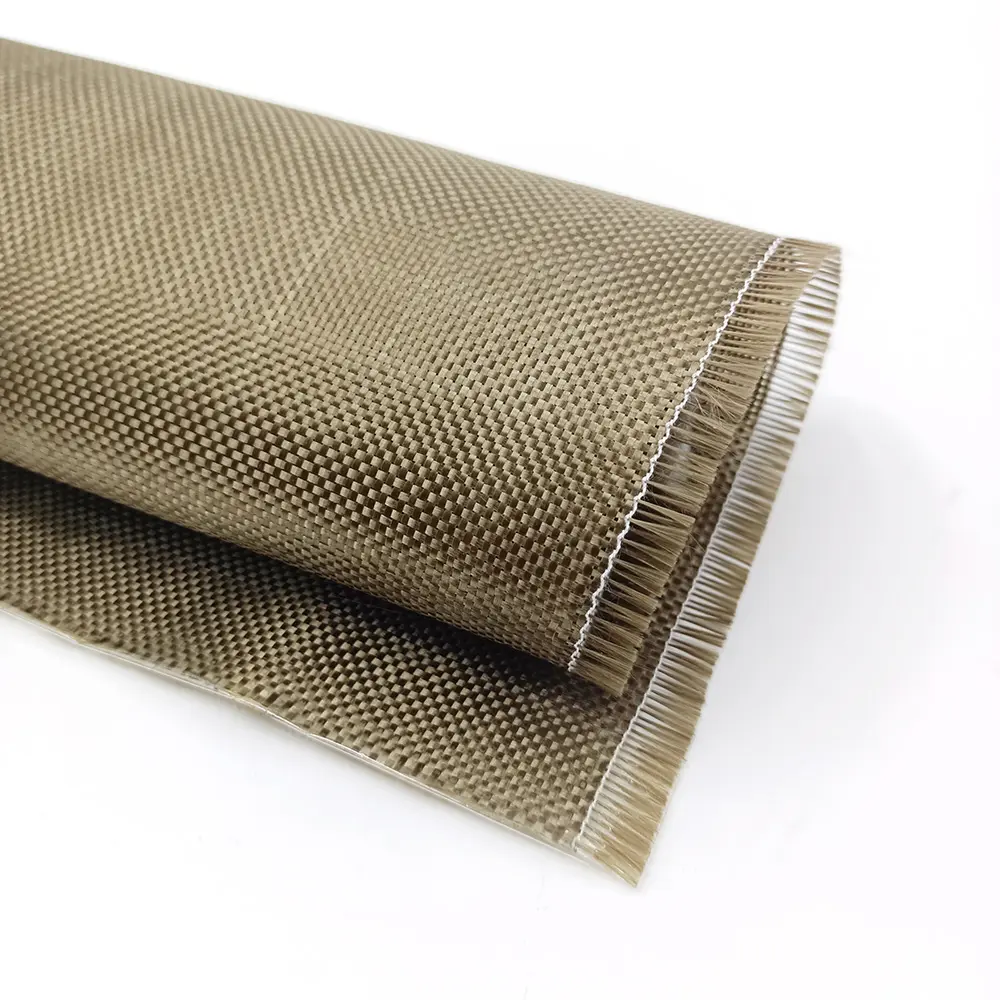

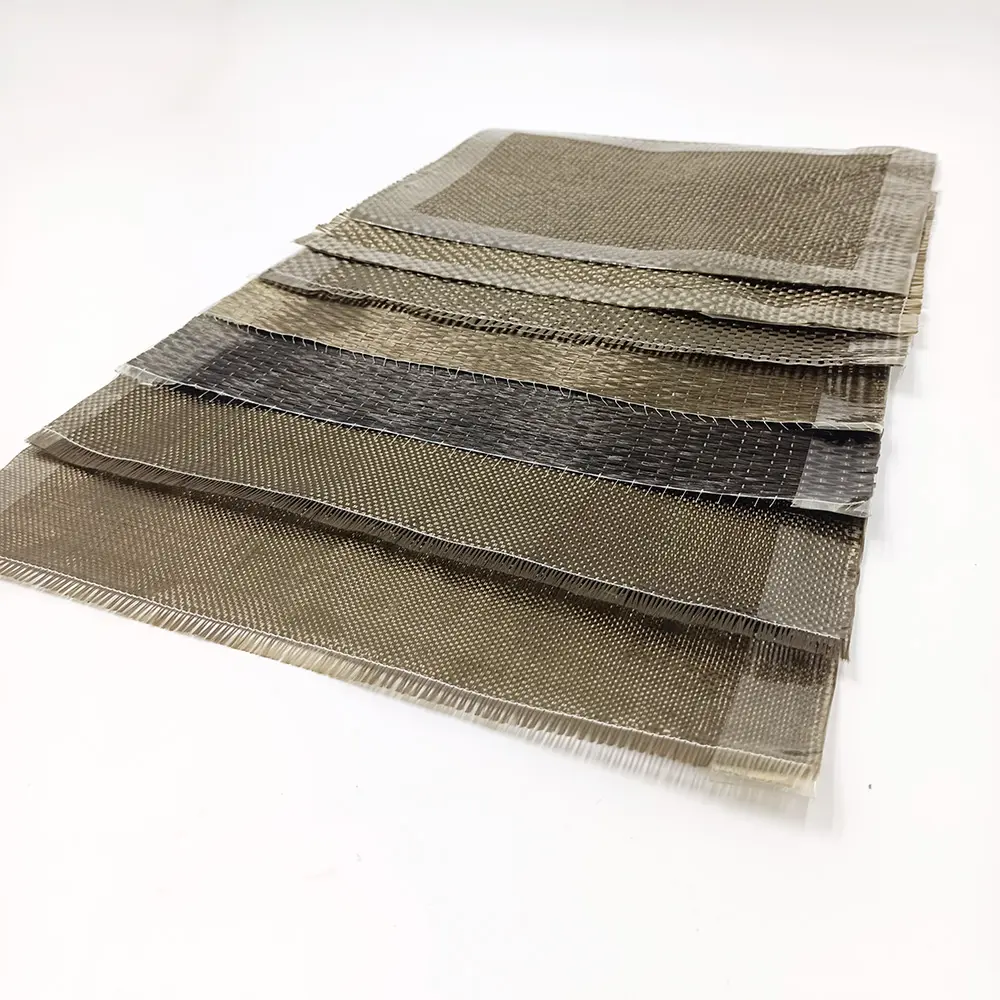

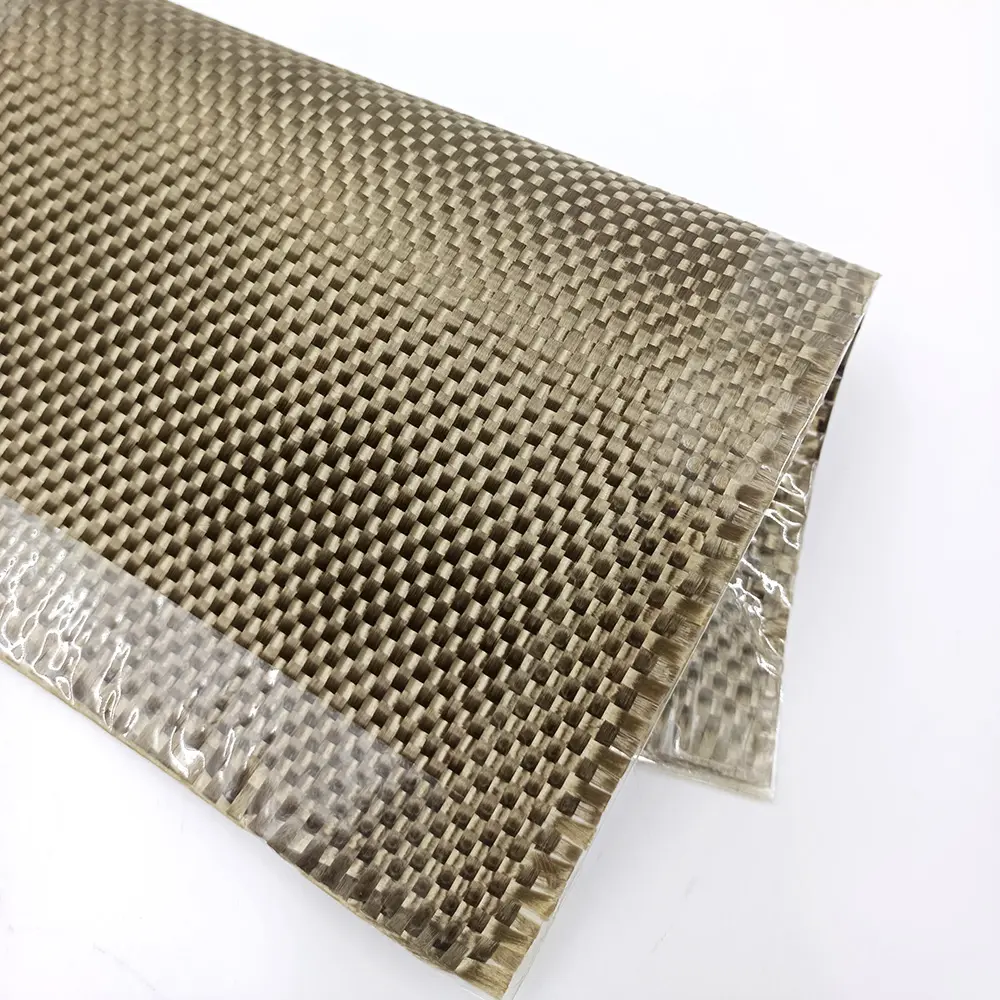

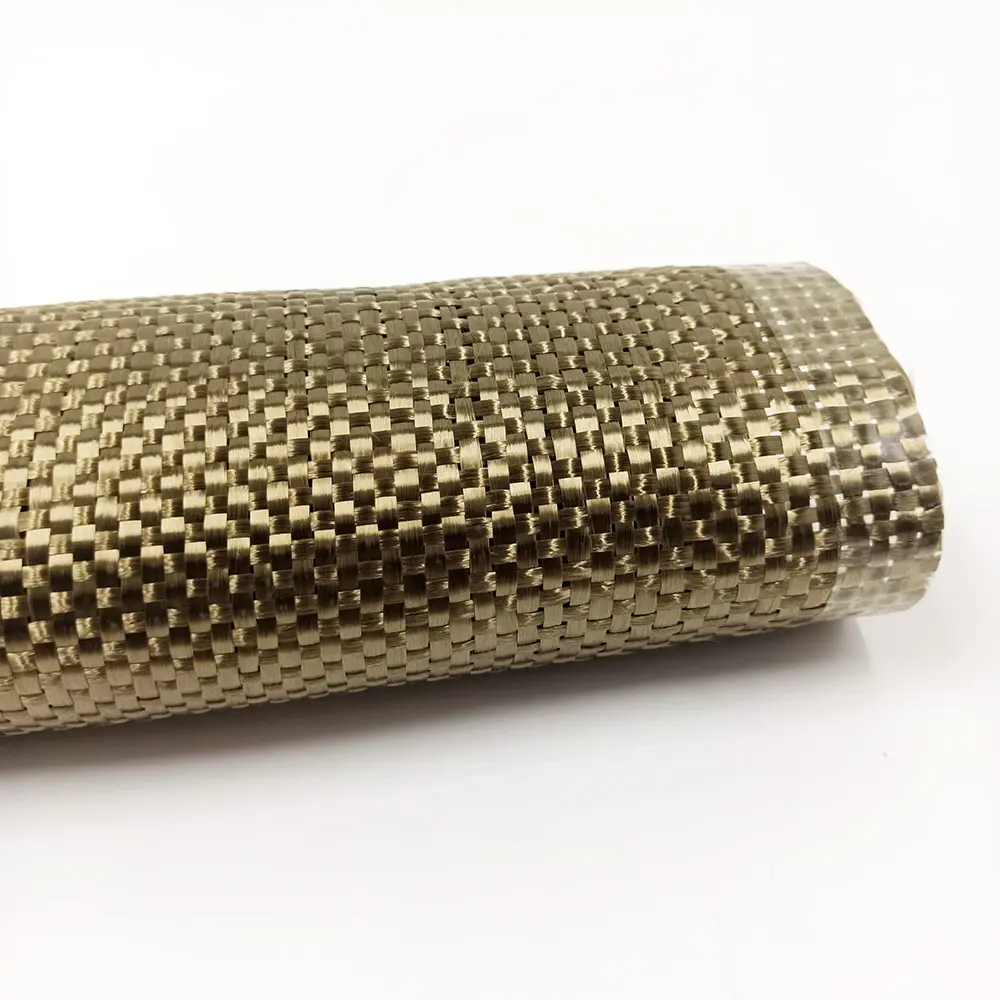

Flexible Fireproof High Temperature Woven Basalt Fiber Fabric Cloth

Product Features

High temperature resistance, corrosion resistance, excellent physical and chemical properties.
High strength, small thickness, good flexibility; parallel and straightening yarn, excellent mechanical properties.
More direction mechanical performance can design according to the actual need freedom enhancement effect.

Product Specification

Style	Reinforcement Yarn		Weave	Fiber Count (10mm)		Weight	Thickness	Width
Style	Warp	Weft	Weave	Warp	Weft	g/m²	mm	cm
BH-A-110	90Tex	90Tex	Plain	6	6	110	0.10	100
BH-A-145	90Tex	90Tex	Plain	8	8	145	0.13	100
BH-B-145	90Tex	90Tex	Twill	8	8	145	0.13	100
BH-A-200	110Tex	110Tex	Plain	9	9	200	0.18	100
BH-B-200	110Tex	110Tex	Twill	9	9	200	0.18	100
BH-A-200	132Tex	132Tex	Plain	8	7	200	0.18	100
BH-B-200	132Tex	132Tex	Twill	8	7	200	0.18	100
BH-A-300	300Tex	300Tex	Plain	5	5	300	0.25	100
BH-B-300	300Tex	300Tex	Twill	5	5	300	0.25	100
BH-A-360	300Tex	300Tex	Plain	6	6	360	0.30	100
BH-B-360	300Tex	300Tex	Twill	6	6	360	0.30	100
BH-B-420	300Tex	300Tex	Twill	7	7	420	0.35	100
BH-A-480	800Tex	800Tex	Plain	3	3	480	0.46	100
BH-A-600	800Tex	800Tex	Plain	4	3.5	600	0.48	100
BH-A-800	800Tex	800Tex	Plain	5	5	800	0.50	100

Product Applications

Infrastructure: Highway reinforcement to prevent cracking.

Industrial Safety: Suitable for electric welding, gas cutting protective equipment, and fireproof fences for shipbuilding and power maintenance.

Protective Gear: Textile, chemical, metallurgy, and military use for fire helmets, neck protection fabrics, and protective products.

Fire Protection: Non-combustible material (up to 1000℃). Ideal for fire curtains, fire blankets, and fire protection bags.

Frequently Asked Questions

Q1: What is the maximum temperature basalt fiber cloth can withstand?

It is a non-combustible material that will not deform or burst even under the action of a 1000℃ flame.

Q2: Is this fabric suitable for chemical environments?

Yes, it has excellent corrosion resistance and can play a protective role in chemical-containing, humid, steam, and smoke environments.

Q3: What are the main weave types available?

We offer both Plain and Twill weave patterns to suit different mechanical performance and flexibility requirements.

Q4: Can the mechanical properties be customized?

Yes, more direction mechanical performance can be designed according to actual enhancement needs.

Q5: What are common industrial uses for this material?

Common applications include highway reinforcement, shipbuilding fireproof fences, gas cutting protection, and large-scale steel structure maintenance.

Q6: Is the basalt fiber fabric flexible enough for clothing?

Absolutely. Due to its small thickness and good flexibility, it is widely used for fire protection clothing, fire helmets, and neck protection fabrics.
