Custom High Temperature Heat Resistant Fireproof Basalt Fiber Braided Sleeve Products, Suppliers

Braided Basalt Fiber Sleeving is made of high quality braided basalt yarns with excellent electrical insulation, high temperature resistance, chemical resistance, and toughness, making it an optimal insulation and protection solution for extreme working environments. Basalt fibers are similar to carbon and glass fibers, but basalt has better mechanical properties than glass fibers and costs less than carbon fibers. Textured basalt braided sleeving is easy to install and provides years of protection and beauty.This sleeving is resistant to most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and compliant

Product Description

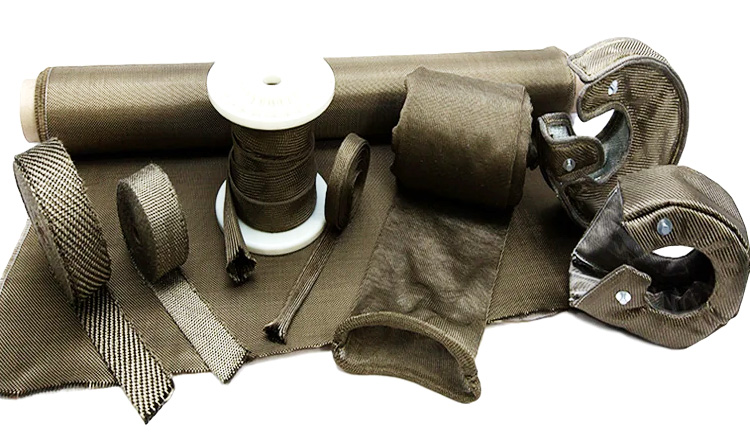

Basalt sleeves and tape
1

Product Description

Basalt Fiber Sleeving is a highly conformable sleeving that provides excellent thermal protection for engine and generator exhaust pipes in automobiles, marine engines and generators, buses, construction and mining equipment. It is also widely used in metallurgical, chemical, automotive, marine and aerospace applications to protect hoses (hydraulic), oil pipes, fluid transfer pipes, exhaust pipes and cables from heat and fire accidents.

2

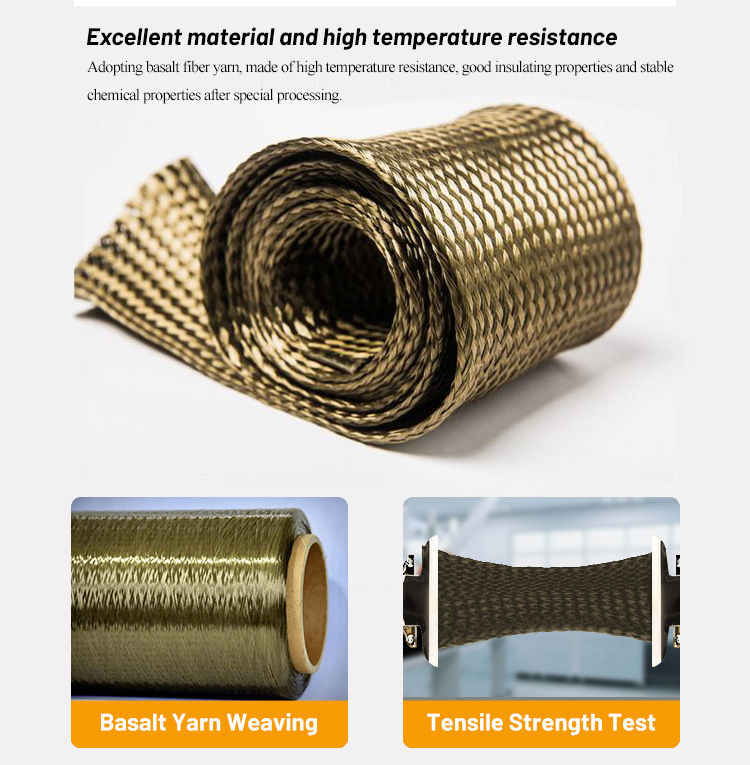

Products Features

Product Features

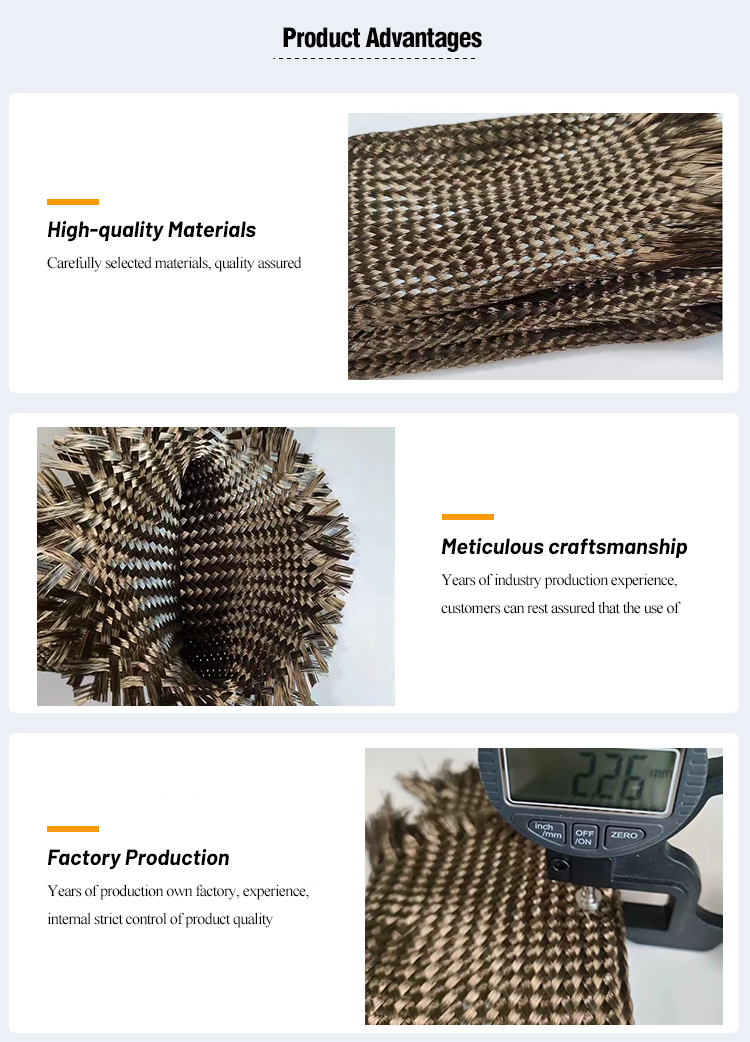

Product Advantages
  • High Temperature Resistance Heat Resistance High Insulation.
  • Excellent electrical insulation Chemical resistance.
  • High chemical stability Sound insulation.
3

Product Specification

Technical Datasheet
Material Basalt
Working temperature -40℃ - +648℃
Flammability VW-1
Melting point +982℃
Standard Color Nature
Standard thickness 1.5 mm
MOQ 300 meter each size
Cutting tool Scissors
Sleeves
Code Diameter (mm) Weight (g/m) Roll Length (m)
BHS-40407040
BHS-606014540
BHS-707016030
BHS-10010022530
BHS-12012024530
BHS-15015030025
BHS-20020039025
Tapes
Code Width (mm) Weight (g/m) Roll Length (m)
BHT-2525400-430100-300
BHT-5050
BHT-7575
BHT-100100
4

Fields of Application

  • Industrial protection: High temperature piping, cable jacketing (e.g. automotive exhaust lines, steel mill equipment), hydraulic hose reinforcement.
  • Aerospace: Engine wiring harness protection, insulating sleeves to reduce weight and increase temperature resistance.
  • Fire & Safety: Fire suits, escape rope reinforcements, flame retardant and high temperature resistant.
  • Construction: Concrete structure reinforcement, earthquake resistant materials, replacing part of the carbon fiber to reduce costs.
  • New Energy: Lithium battery pack insulation sleeve, solar energy equipment cable protection.

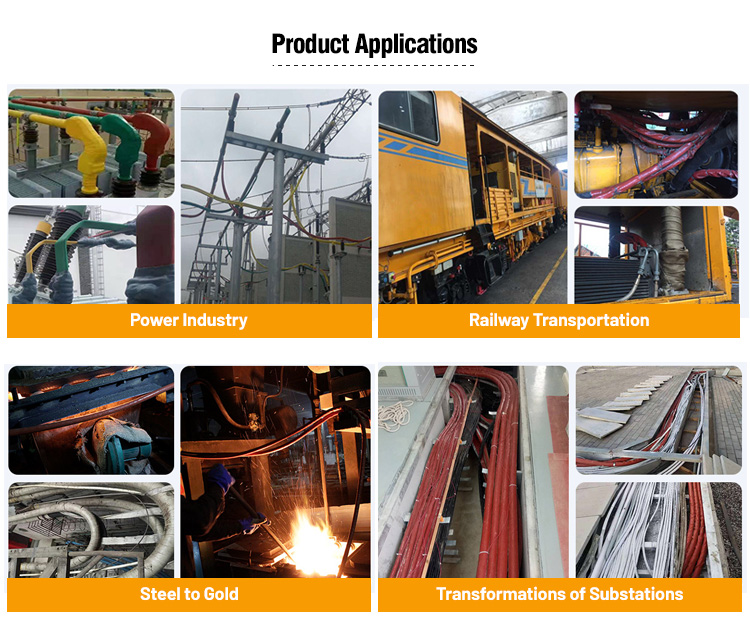

Product Applications

Frequently Asked Questions

What is the temperature range for Basalt Fiber Sleeving?
The working temperature ranges from -40℃ to +648℃, with a melting point of +982℃.
What are the primary applications for these sleeves?
They are used for thermal protection in automobile exhaust pipes, marine engines, aerospace wiring, and industrial hydraulic hoses.
Is the material resistant to chemicals?
Yes, Basalt fiber offers excellent chemical stability and resistance, making it suitable for metallurgical and chemical environments.
Can I cut the sleeve to a specific length?
Yes, the material can be easily cut using standard industrial scissors.
What is the flammability rating of this product?
The product has a VW-1 flammability rating, providing high-level fire and heat safety.
How does Basalt fiber compare to carbon fiber in construction?
In construction, basalt fiber can replace parts of carbon fiber to reduce costs while providing excellent earthquake resistance and reinforcement.
