Wholesale High Temperature Wire Protector Braided Basalt Heat Insulation Sleeve Product, Factory

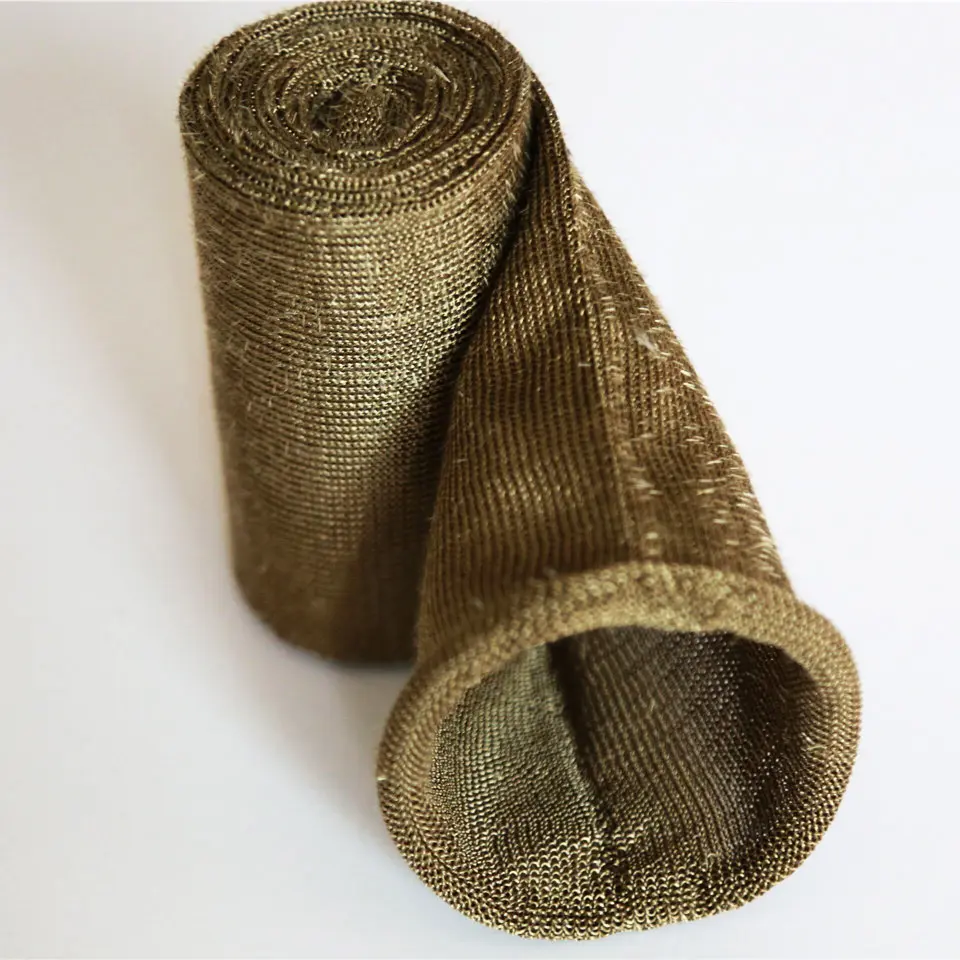

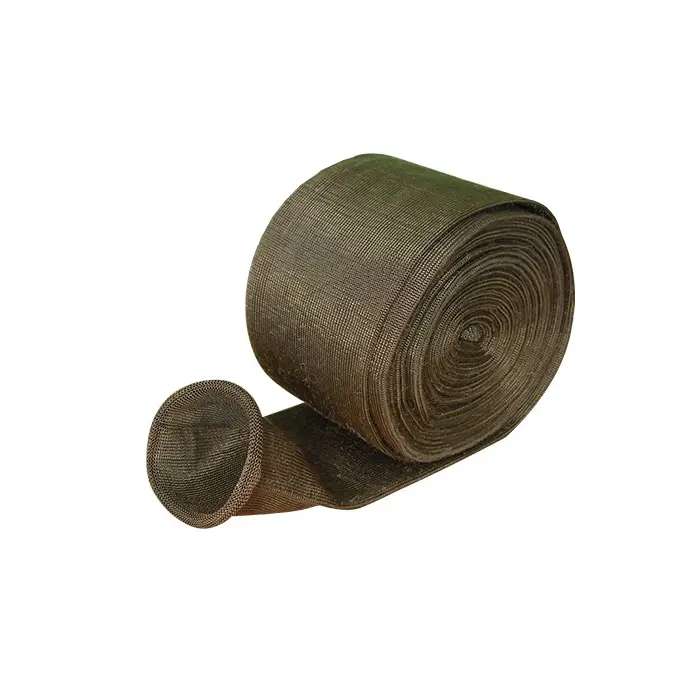

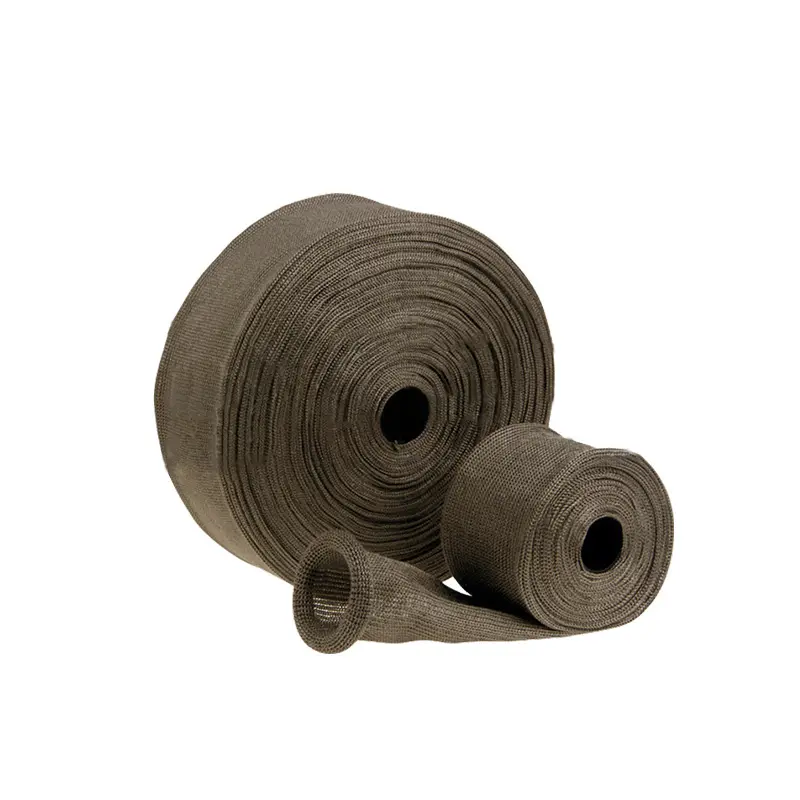

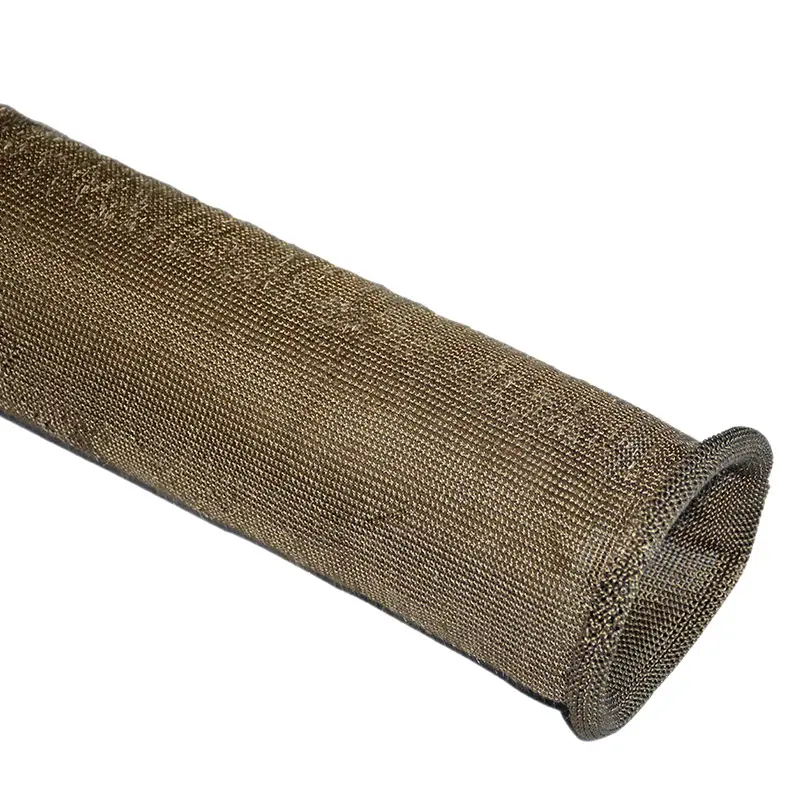

The Braided Basalt Sleeve is a high-performance thermal protection solution made from continuous filament basalt fibers, which are derived from volcanic rock. It is primarily used to shield wires, hoses, and cables from extreme heat and abrasion.

Send Inquiry

Product Description

Product Description

Basalt Fiber Sleeving is a highly conformable sleeving that provides excellent thermal protection for engine and generator exhaust pipes in automobiles, marine engines and generators, buses, construction and mining equipment. It is also widely used in metallurgical, chemical, automotive, marine and aerospace applications to protect hoses (hydraulic), oil pipes, fluid transfer pipes, exhaust pipes and cables from heat and fire accidents.

Product Features

High Temperature & Heat Resistance

High Insulation Performance

Excellent Electrical Insulation

Chemical Resistance & Stability

Sound Insulation Properties

Technical Datasheet

Material	Basalt
Working temperature	-40℃ - +648℃
Flammability	VW-1
Melting point	+982℃
Standard Color	Nature
Standard thickness	1.5 mm
MOQ	300 meter each size
Cutting tool	Scissors

Sleeves & Tapes Specifications

Sleeves
Code	Diameter (mm)	Weight (g/m)	Roll Length (m)
BHS-40	40	70	40
BHS-60	60	145	40
BHS-70	70	160	30
BHS-100	100	225	30
BHS-120	120	245	30
BHS-150	150	300	25
BHS-200	200	390	25
Tapes
Code	Width (mm)	Weight (g/m)	Roll Length (m)
BHT-25	25	400-430	100-300
BHT-50	50
BHT-75	75
BHT-100	100

Fields of Application

Industrial Protection High temperature piping, cable jacketing (automotive exhaust, steel mill equipment), hydraulic hose reinforcement.

Aerospace Engine wiring harness protection, insulating sleeves for weight reduction and temperature resistance.

Fire & Safety Fire suits, escape rope reinforcements, flame retardant and high temperature resistant applications.

Construction Concrete structure reinforcement, earthquake resistant materials, cost-effective carbon fiber alternative.

New Energy Lithium battery pack insulation sleeve, solar energy equipment cable protection.

Frequently Asked Questions

1. What is the maximum working temperature for Basalt Fiber Sleeving?

The continuous working temperature ranges from -40°C to +648°C, with a melting point of +982°C.

2. Is this material resistant to chemicals?

Yes, Basalt fiber sleeving provides excellent chemical resistance and high chemical stability, making it ideal for industrial and metallurgical environments.

3. What tools should be used to cut the basalt sleeving?

Standard industrial scissors are sufficient for cutting the material to the desired length.

4. Does the basalt fiber sleeving provide electrical insulation?

Yes, it features high electrical insulation properties, which is why it is frequently used for engine wiring harness and cable protection.

5. What are the available sizes for sleeves and tapes?

Sleeves are available in diameters from 40mm to 200mm, while tapes are offered in widths from 25mm to 100mm. Custom sizes may be subject to MOQ requirements.

6. What is the flammability rating of this product?

The basalt fiber sleeving meets the VW-1 flammability standard, providing superior fire protection for critical components.
