Product Introduction

Basalt rebar is a type of reinforcement bar made from basalt fibers, which are extracted from volcanic rock. It is an alternative to traditional steel reinforcement used in construction projects. Basalt rebar offers several advantages over steel rebar, including higher tensile strength, lighter weight, and corrosion resistance. These properties make it particularly suitable for applications in harsh environments where corrosion is a concern, such as marine structures, bridges, and chemical plants.resistance of asphalt concrete.

Send Inquiry

Product Description

PRODUCT FEATURES

🚀

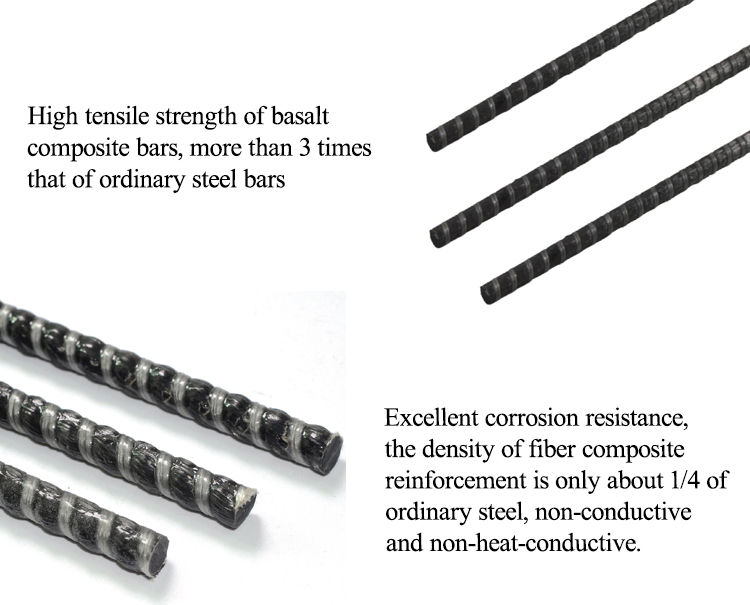

High tensile strength, more than 3 times the strength of ordinary steel bars of the same specification.

🛡️

Excellent corrosion resistance, unmatched by any other fiber material products.

⚖️

Lightweight: Density is less than 2.0g/cm3, only about 1/4 of ordinary steel bars.

🌡️

Thermal expansion coefficient similar to concrete, preventing temperature stress.

📡

Good wave-transmitting performance and no electromagnetic shielding.

⚡

Non-conductive and non-conductive, ensuring safety in electrical environments.

🛠️

Versatile: Standard curved and other shapes can be prefabricated.

🌱

Environmental protection: Saves 5.24tce of standard coal carbon emissions per ton.

PRODUCT SPECIFICATION

Brand	Weight (g/m)	Diameter (mm)	Area (mm²)	Tensile Strength (MPa)	Ultimate Tension (KN)	Elastic Modulus (GPa)	Limiting Strain (%)
BH-4	26	4	12.56	1350	16.96	55	2.30
BH-6	57	6	28.26	1250	35.33	55	2.27
BH-8	104	8	50.24	1200	60.29	55	2.18
BH-10	162	10	78.5	1200	94.2	52	2.31
BH-12	219	12	113.04	1100	124.34	50	2.20
BH-14	307	14	153.86	1000	153.86	48	2.08
BH-16	412	16	200.96	1000	200.96	48	2.08
BH-18	513	18	254.34	900	228.9	45	2.08
BH-20	635	20	314	900	286.2	45	2.08
BH-22	770	22	379.94	800	303.95	42	2.00
BH-25	992	25	490.625	800	392.5	42	2.00

Comparison of Materials

Name		Steel Reinforcement	Steel Reinforcement (FRP)	Basalt Fiber (BFRP)
Tensile strength (MPa)		500-700	500-750	600-1500
Yield strength (MPa)		280-420	None	600-800
Compressive strength (MPa)		-	-	450-550
Tensile modulus (GPa)		200	41-55	50-65
Thermal Exp. (10⁻⁶/℃)	Vertical	11.7	6-10	9-12
Thermal Exp. (10⁻⁶/℃)	Horizontal	11.7	21-23	21-22

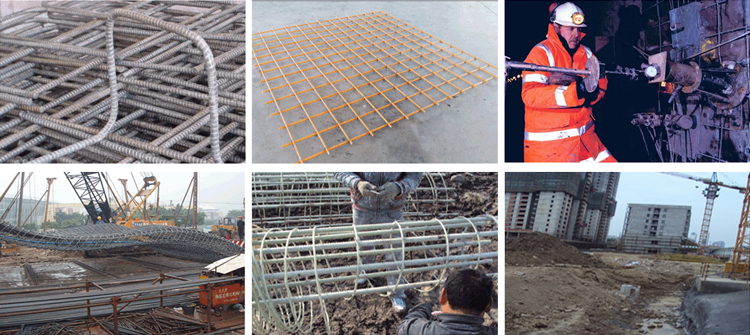

APPLICATIONS

🏗️

Building & Infrastructure

Strengthens concrete in buildings, bridges, and roads, lasting longer in tough conditions.

🔧

Fixing Structures

Helps repair old concrete structures, making them significantly stronger and more durable.

🧪

Tough Environments

Ideal for chemical plants and wind turbine bases as it doesn't corrode or weaken easily.

🛣️

Roads and Tunnels

Used in highways, tunnels, and dams to increase toughness and operational lifespan.

Frequently Asked Questions

Why is basalt rebar better than steel for corrosion?

Basalt fiber composite bars possess natural chemical inertness, meaning they do not rust or corrode even when exposed to salt water, chemicals, or high humidity, unlike traditional steel.

How does the weight of basalt rebar compare to steel?

Basalt rebar is significantly lighter, with a density of less than 2.0g/cm3. This is approximately 1/4 the weight of ordinary steel bars, making transportation and installation much easier.

Can basalt rebar be used in magnetic sensitive areas?

Yes. Because it is non-conductive and provides no magnetic shielding, it is perfect for use in hospitals (MRI rooms), airports, and electronic research facilities.

Is basalt rebar environmentally friendly?

Absolutely. Each ton of basalt fiber composite bars can save 5.24tce of standard coal carbon emissions, making it a sustainable choice for green construction projects.

What is the tensile strength of basalt rebar?

Basalt rebar is incredibly strong, offering high tensile strength that is more than 3 times the strength of ordinary steel bars of the same specification.

Does basalt rebar bond well with concrete?

Yes, its thermal expansion coefficient is very similar to concrete, which ensures that there is no significant temperature stress between the two materials, maintaining structural integrity.
